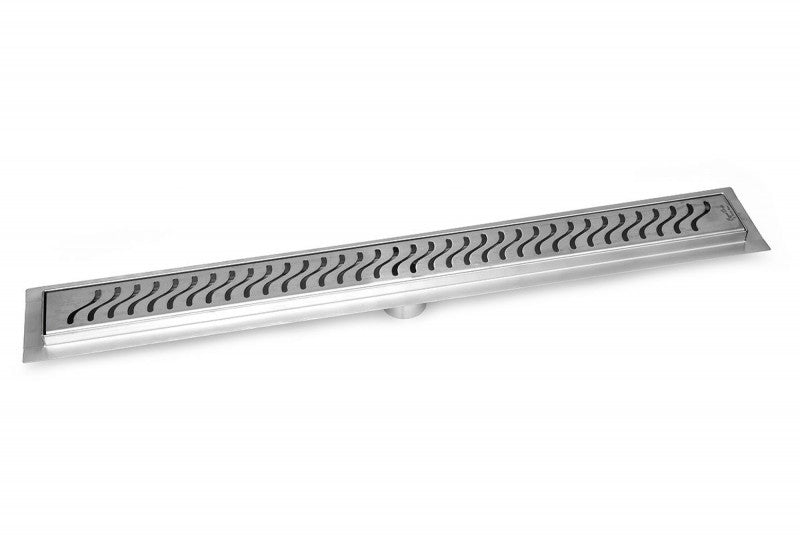

SereneDrains 39 Inch Linear Shower Drain, Stainless Steel Ocean Wave Design, Free Hair Trap Included

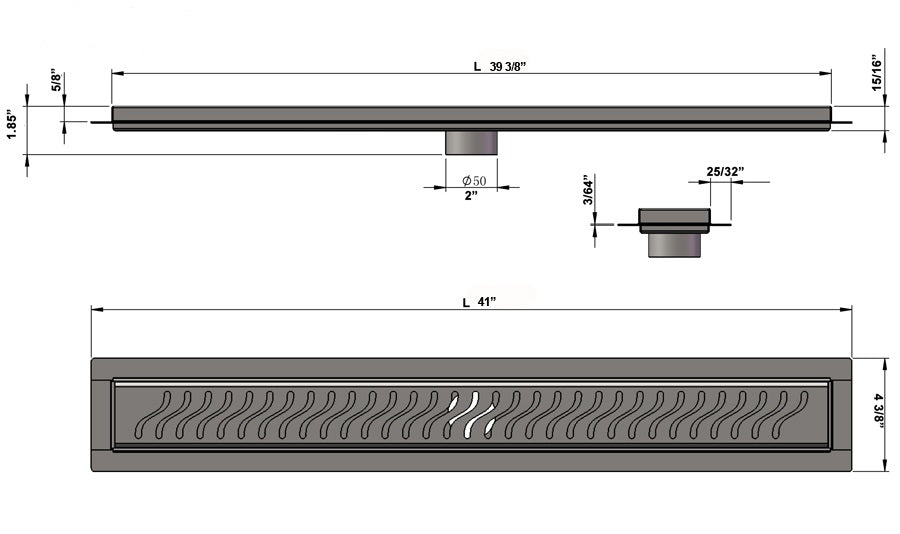

Net Size 39" 3/8" x 2 3/4" (1000mm) | Overall Size 40.95" x 4 3/8" | Intake sq. in: 21.12.

In Stock, Ready to Ship. Free Shipping

Available In: 16", 24", 30", 35", 39", 47", 59"

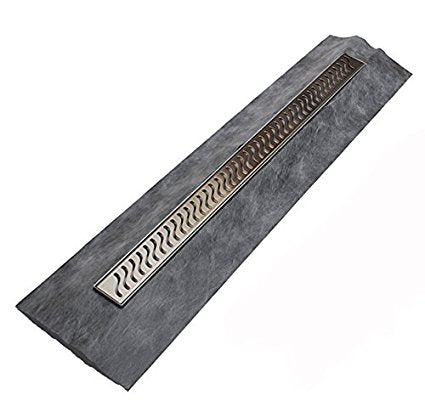

Drain Includes: stainless steel channel body & grate, puller key, hair trap, waterproofing membrane sheet around the drain flange (not required but included), Installation Instructions.

Why Choose SereneDrains: Our linear shower drain is constructed from 16-gauge 304 stainless steel, including the flange, channel, and grate, providing superior protection against corrosion and rust. The flange is designed for easy installation with all types of waterproofing materials such as 'Hot-Mop,' liquid membranes, sheet membranes, and vinyl waterproofing. Additionally, the shower drain is built without leveling feet, offering greater stability and simplifying installation by allowing the flange to rest directly on the floor edge. The frame is rounded (folded, not welded), making it twice as strong and ensuring a smooth touch underfoot. Plus, it’s entirely free of plastic parts.

Applications: Shower & bath, kitchen, balconies, hotel rooms, gym, etc. Perfect for wheelchair access (ADA compliant) & barrier-free showers (walk-in floor plans).

Main Features:

• Stainless steel brushed finish.
• Superior quality laser-cut electropolish finish.
• Bodies are fully welded and leak-tested before dispatch.
• 2-inch diameter central vertical outlet.
• Designed to be installed into any 2" shower drain flange.
• Compatible with tiles up to 10mm in depth (14mm lip).
• Sized to match standard 1/2", 1", 2", and 4" tiles without cutting.
• Pre-slope channel. Channel width: 2 3/4" (70 mm).
• Drain grate is 16-gauge 304 stainless steel.
• Flow rate: at the entrance of the shower - 6.3 GPM (0.4 l/s); against the wall - 9.5 GPM (0.6 l/s).
• Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, etc.

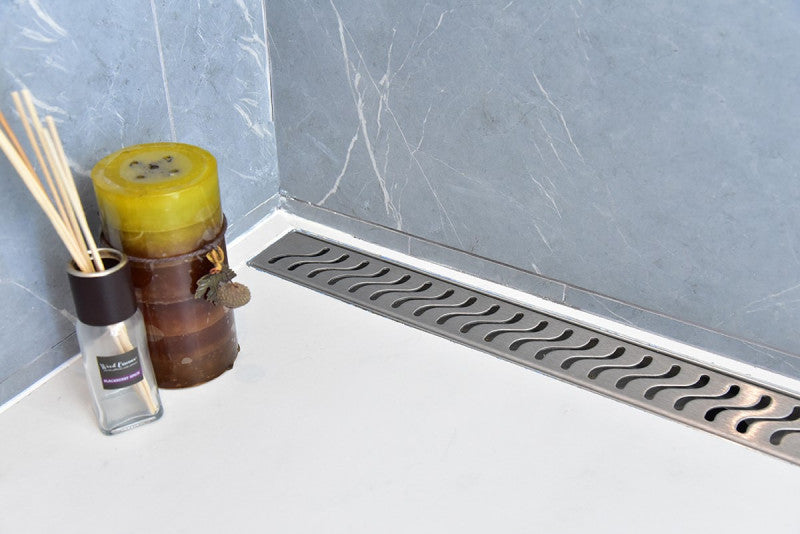

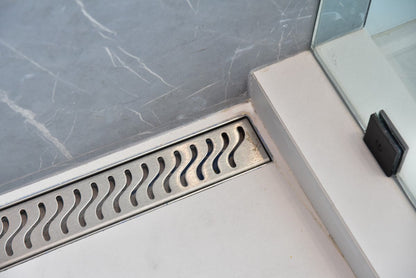

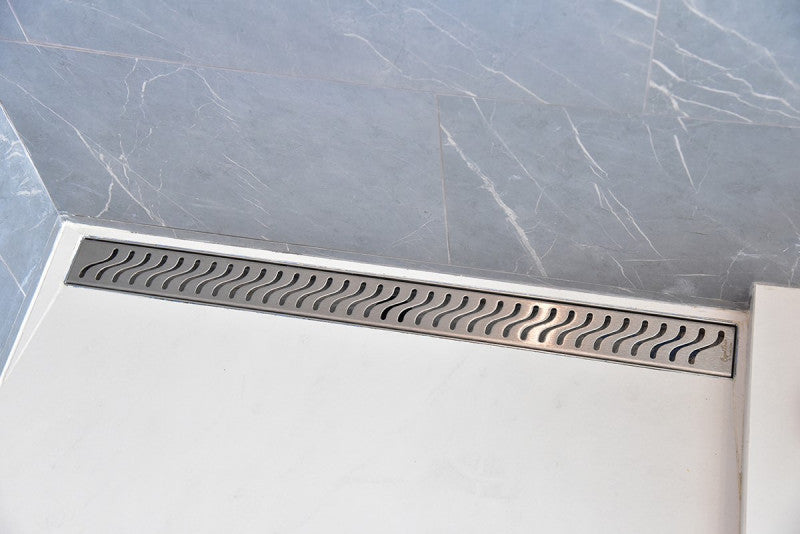

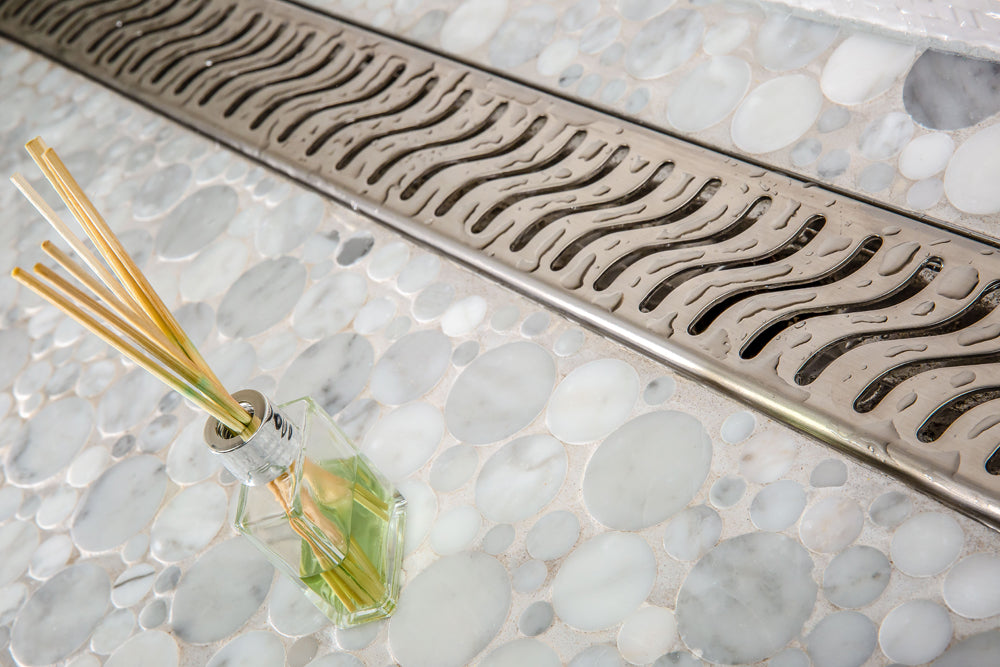

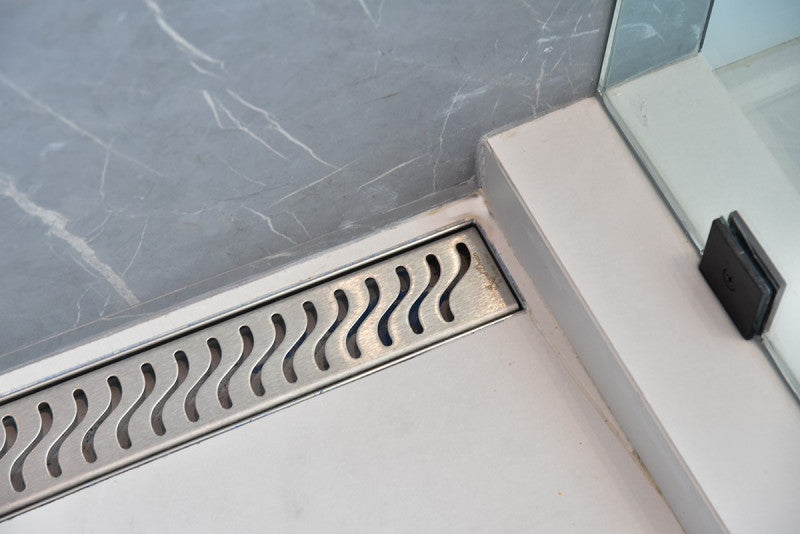

SereneDrains Ocean Wave Series Brushed Stainless Steel linear shower drains combine elegance and functionality for any shower or bathroom. Their tranquil ocean wave-inspired design seamlessly integrates with your space, enhancing both the look and feel of your shower. With a contemporary touch that marries beauty and performance, the easy-to-remove tray simplifies maintenance, ensuring your shower remains immaculate and inviting for years to come.

For added shower beauty, the Ocean Wave Series linear drains come with matching shower shelves for a coordinated, harmonious shower design. Both fixtures enhance your bathroom’s style, creating a unified and sophisticated look.

Click here for more about the our SereneDrains' premium collection. luxury shower drains.

We also offer plumbing parts and accessories for drains, including ABS,PVC,Cast Iron flanges and debris strainers.

30-day return policy. Money-back guarantee. Contact us for quantity discounts.
