SereneDrains 24 Inch Linear Shower Drain, Luxurious Polished Chrome, Broken Lane Design, Free Hair Trap Included

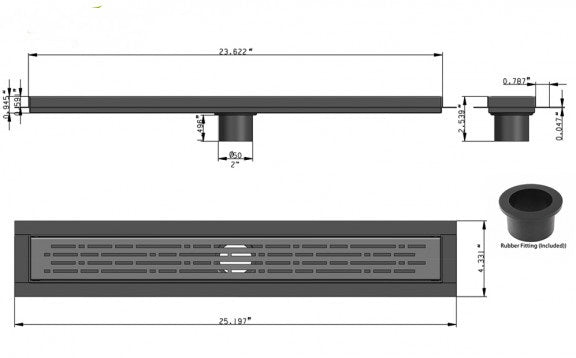

Net Size 23" 1/2" x 2 3/4" (600mm) | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96.

In Stock, Ready to Ship. Free Shipping

Available In: 16", 24", 30", 35", 39", 47", 59"

Drain Includes: stainless steel channel body & grate, puller key, hair trap, waterproofing membrane sheet around the drain flange (not required but included), Installation Instructions.

SereneDrains Broken Lane Polished Chrome Linear Drains, crafted from stainless steel, offer a perfect blend of modernity and functionality for your shower or bathroom. Their design naturally complements your space, adding a touch of elegance to your shower's appearance and ambiance. The modern design not only looks great but also provides excellent drainage performance and makes cleaning easy with a removable tray, keeping your shower fresh and welcoming for years.

Why Choose SereneDrains: Our linear shower drain is constructed from 16-gauge 304 stainless steel, including the flange, channel, and grate, providing superior protection against corrosion and rust. The flange is designed for easy installation with all types of waterproofing materials such as 'Hot-Mop,' liquid membranes, sheet membranes, and vinyl waterproofing. Additionally, the shower drain is built without leveling feet, offering greater stability and simplifying installation by allowing the flange to rest directly on the floor edge. The frame is rounded (folded, not welded), making it twice as strong and ensuring a smooth touch underfoot. Plus, it’s entirely free of plastic parts.

Applications: Shower & bath, kitchen, balconies, hotel rooms, gym, etc. Perfect for wheelchair access (ADA compliant) & barrier-free showers (walk-in floor plans).

Main Features:

• Stainless steel polished chrome finish.
• Superior quality laser-cut electropolish finish.
• Bodies are fully welded and leak-tested before dispatch.
• 2-inch diameter central vertical outlet.
• Designed to be installed into any 2" shower drain flange.
• Compatible with tiles up to 10mm in depth (14mm lip).
• Sized to match standard 1/2", 1", 2", and 4" tiles without cutting.
• Pre-slope channel. Channel width: 2 3/4" (70 mm).
• Drain grate is 16-gauge 304 stainless steel.
• Flow rate: at the entrance of the shower - 6.3 GPM (0.4 l/s); against the wall - 9.5 GPM (0.6 l/s).
• Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, etc.

Click here for more about the our SereneDrains' premium collection. luxury shower drains.

We also offer plumbing parts and accessories for drains, including ABS,PVC,Cast Iron flanges and debris strainers.

30-day return policy. Money-back guarantee. Contact us for quantity discounts.
