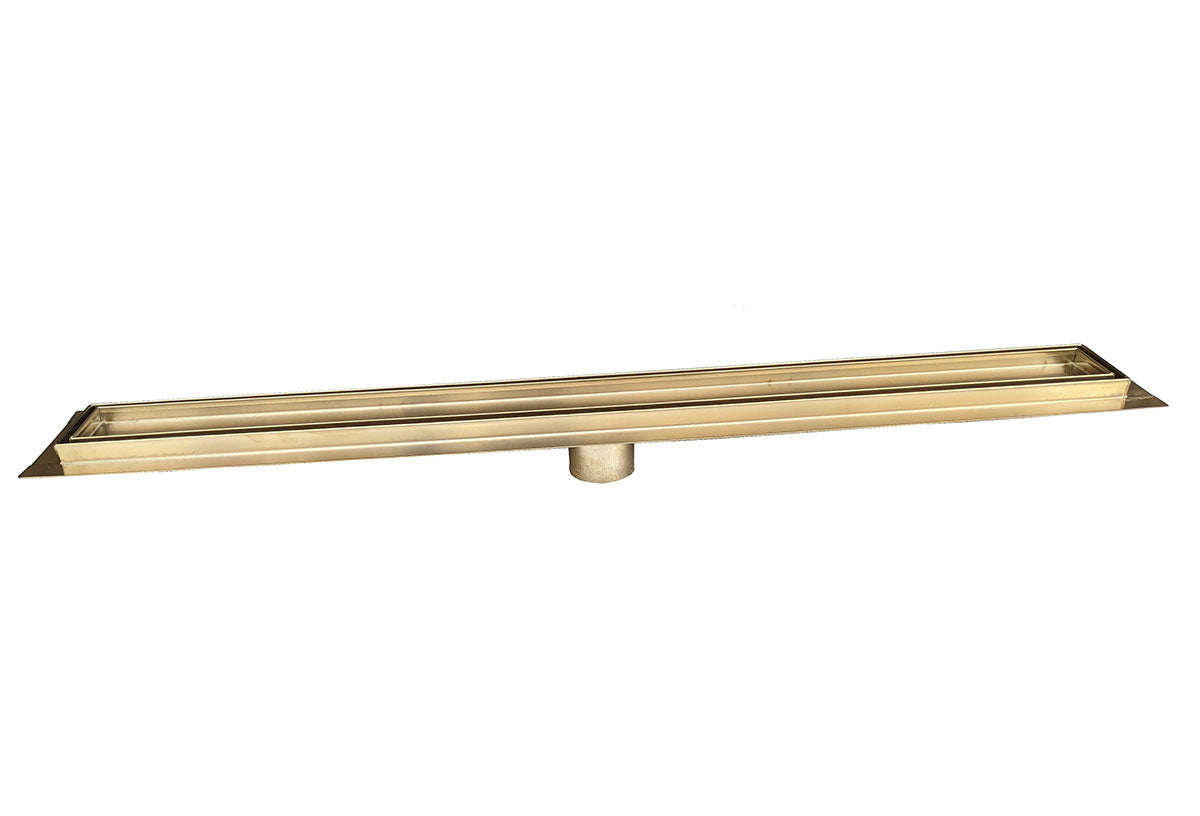

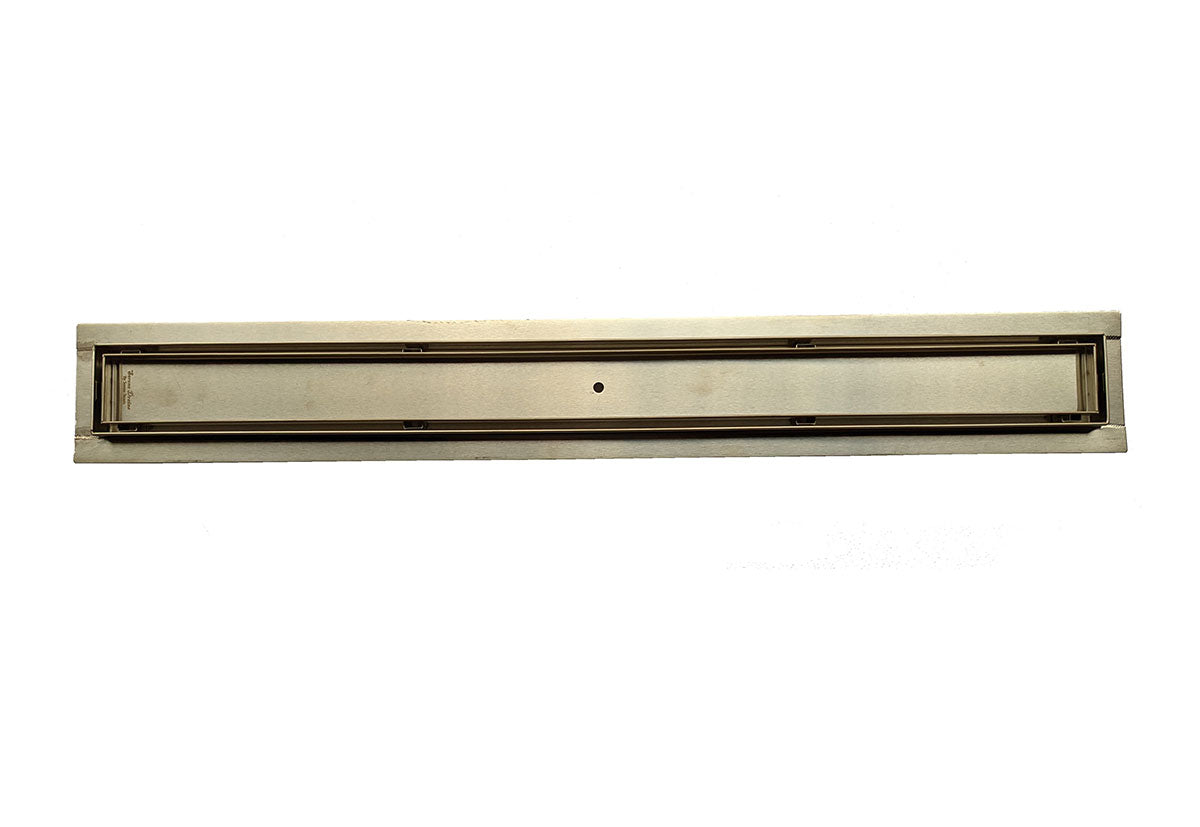

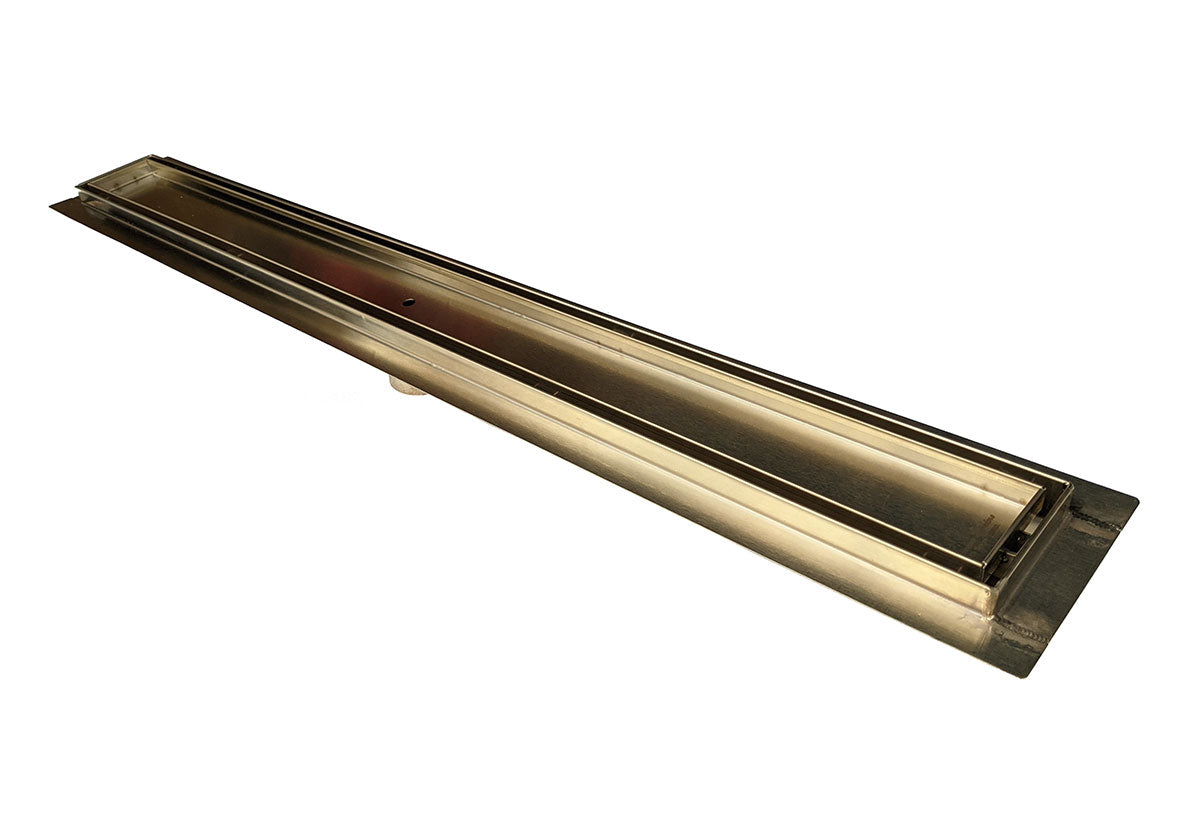

SereneDrains Satin Gold 16 Inch Tile Insert Linear Shower Drain, Free Hair Trap Included

The tile insert shower drain is designed to camouflage the drain with the same tile you are installing on the shower floor. With this gold luxurious tile-in drain design, the floor tile extends right over the drain, making it nearly invisible.

Net Size: 15" 3/4" x 2 3/4" (400mm) | Overall Size: 17" 1/4" x 4 3/8" | Intake sq. in: 12.38

In Stock, Ready to Ship. Free Shipping

Available In: 16", 24", 30", 35", 39", 47", 59"

Drain Includes: stainless steel channel body & grate, puller key, hair trap, waterproofing membrane sheet around the drain flange (not required but included), Installation Instructions.

Why Choose SereneDrains: Our linear shower drain is constructed from 16-gauge 304 stainless steel, including the flange, channel, and grate, providing superior protection against corrosion and rust. The flange is designed for easy installation with all types of waterproofing materials such as 'Hot-Mop,' liquid membranes, sheet membranes, and vinyl waterproofing. Additionally, the shower drain is built without leveling feet, offering greater stability and simplifying installation by allowing the flange to rest directly on the floor edge. The frame is rounded (folded, not welded), making it twice as strong and ensuring a smooth touch underfoot. Plus, it’s entirely free of plastic parts.

Applications: Shower & bath, kitchen, balconies, hotel rooms, gym, etc. Perfect for wheelchair access (ADA compliant) & barrier-free showers (walk-in floor plans).

Main Features:

• Stainless steel Satin Gold finish.
• Superior quality laser-cut electropolish finish.
• Bodies are fully welded and leak-tested before dispatch.
• 2-inch diameter central vertical outlet.
• Designed to be installed into any 2" shower drain flange.
• Compatible with tiles up to 10mm in depth (14mm lip).
• Sized to match standard 1/2", 1", 2", and 4" tiles without cutting.
• Pre-slope channel. Channel width: 2 3/4" (70 mm).
• Drain grate is 16-gauge 304 stainless steel.
• Flow rate: at the entrance of the shower - 6.3 GPM (0.4 l/s); against the wall - 9.5 GPM (0.6 l/s).
• Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, etc.

SereneDrains Gold Tile Insert Linear Drains offer a stylish solution for shower and bathroom designs. These drains blend seamlessly with the floor, contributing to a minimalist appearance. The tray’s easy removal simplifies maintenance and cleaning, ensuring a hassle-free experience. Imagine your stunning new shower with this tile insert linear drain merging with your chosen bathroom tiles or mosaic. Its low-profile design highlights the beauty of your tiles, creating a cohesive and eye-catching aesthetic.

Discover SereneDrains' premium collection. Click here for more about the elegance of our luxury shower drains.

We also offer plumbing parts and accessories for drains, including ABS/PVC/Cast Iron flanges and debris strainers.

30-day return policy. Money-back guarantee. Contact us for quantity discounts.
