SereneDrains 47 Inch Invisible Linear Shower Drain Hidden Slim Design, Free Hair Trap Included

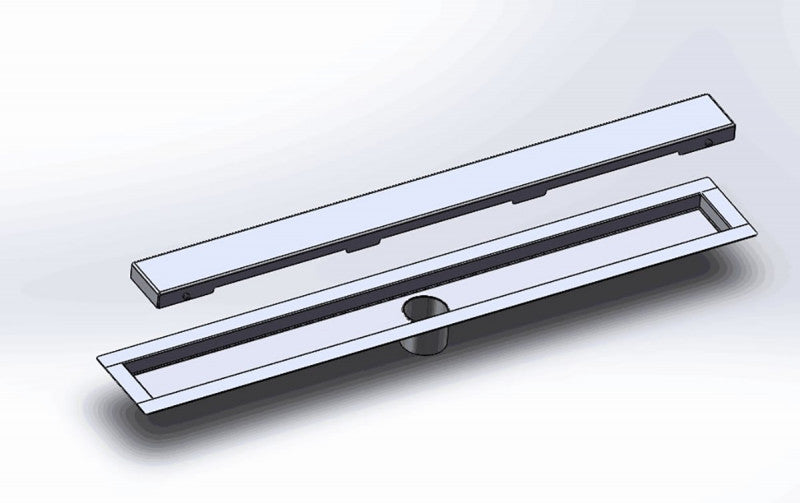

The Invisible Slim Design linear shower drain is designed to blend with the shower floor by using the same tile over the drain as the rest of the shower. With this Infinity tile-over linear drain, the floor tile extends seamlessly over the drain, creating a nearly invisible appearance.

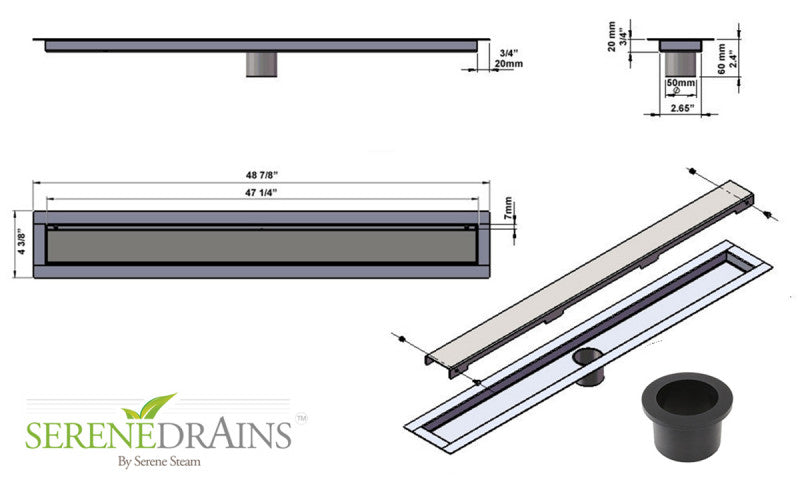

Net Size: 47 1/4" x 2 3/4" (1200mm) | Overall Size 48.82" x 4 3/8" | Intake sq. in: 26.68

In Stock Ready to Ship. Free Shipping

Available In: 16", 24", 30", 35", 39", 47", 59".

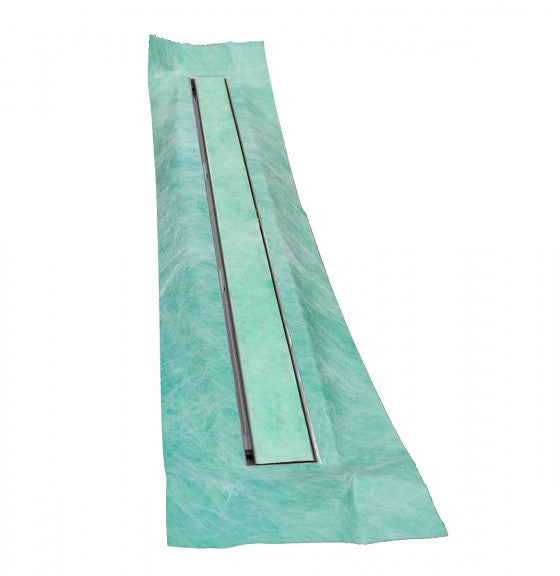

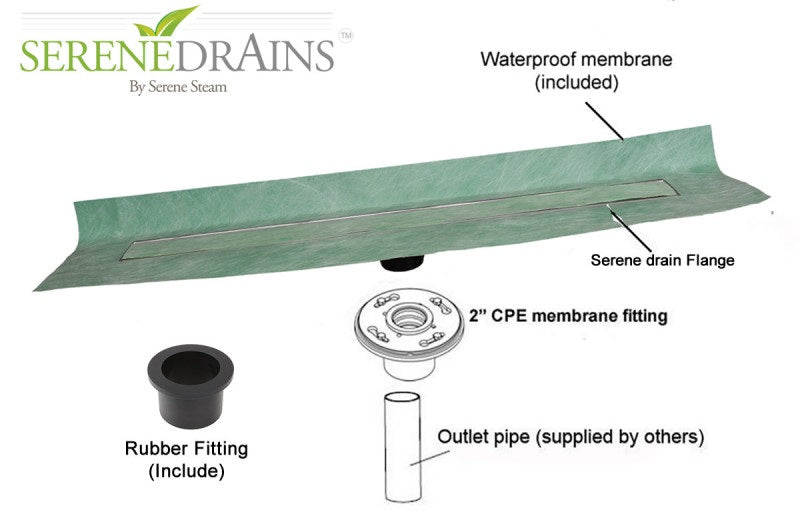

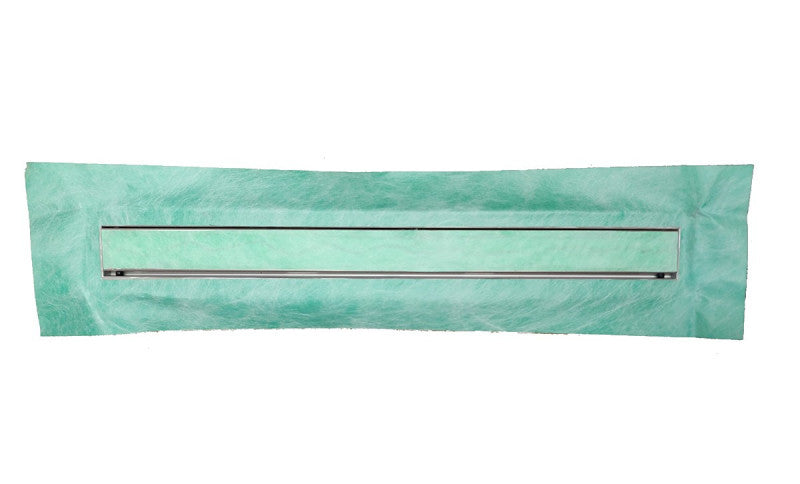

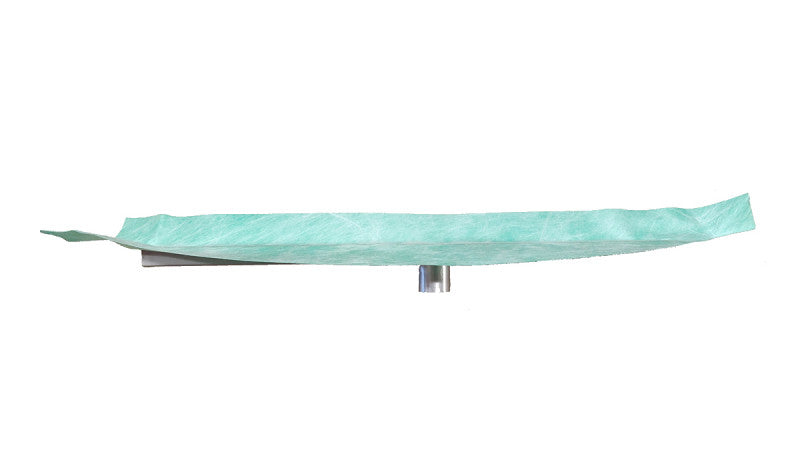

Drain Includes: stainless steel channel body & grate, puller key, hair trap, waterproofing membrane sheet around the drain flange (not required but included), Installation Instructions.

Applications: Shower & bath, kitchen, balconies, hotel rooms, gym, etc. Perfect for wheelchair access (ADA compliant) & barrier-free showers (walk-in floor plans)

Main Features:

• Stainless steel brushed finish.
• Superior quality laser-cut electropolish finish.
• Bodies are fully welded and leak-tested before dispatch.
• 2-inch diameter central vertical outlet.
• Designed to be installed into any 2" shower drain flange.

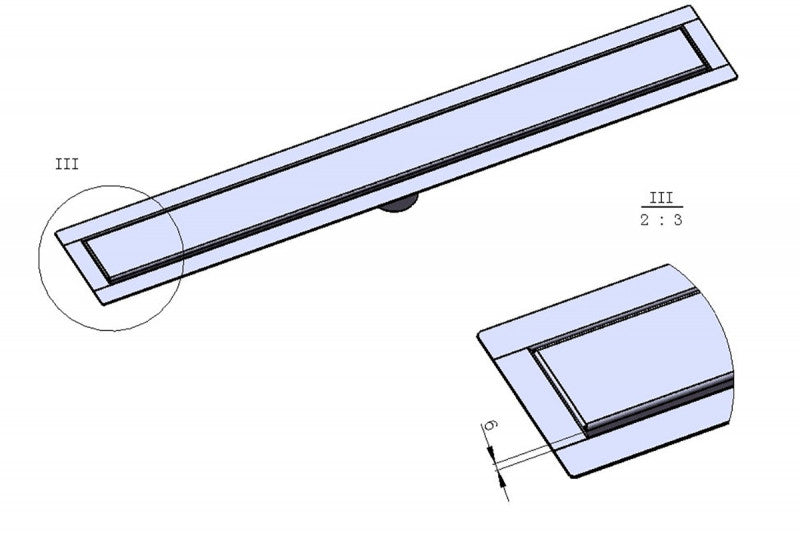

• Compatible with tiles up to 10mm in depth (14mm lip).
• Sized to match standard 1/2", 1", 2", and 4" tiles without cutting.

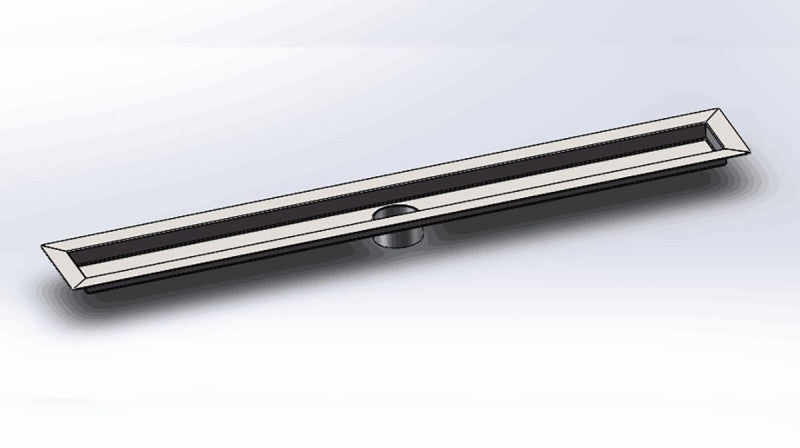

• Pre-Slope channel. Channel width: 2 3/4" (70 mm).
• Drain grate is 16-gauge 304 stainless steel.
• Flow rate: at the entrance of the shower - 6.3 GPM (0.4 l/s); against the wall - 9.5 GPM (0.6 l/s).
• Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, etc.

SereneDrains Invisible Slim linear drains offer a contemporary and aesthetically pleasing solution for shower and bath remodels. These drains create the appearance of seamlessly blending with the floor, contributing to a sleek and minimalist design. The tray's easy removal facilitates straightforward maintenance and cleaning, ensuring a hassle-free experience. Constructed from 16-gauge 304 stainless steel, the body and grate of this linear floor drain not only enhance the overall appeal but also provide durability. The flange body edge is thoughtfully designed for use with any type of waterproofing, making it a versatile choice suitable for any shower construction. Visualize your stunning new shower with this Invisible Slim tile-over linear drain blending with the colors and patterns of your preferred tiles or mosaic. The low-profile design of this drain accentuates the beauty of your bathroom tiles, creating a cohesive and visually striking bathroom aesthetic.

We also offer plumbing parts and accessories for drains, including ABS/PVC/Cast Iron flanges and debris strainers.

Discover SereneDrains' premium collection. Click here for more about the elegance of our luxury shower drains.

30-day return policy. Contact us for quantity discounts.
