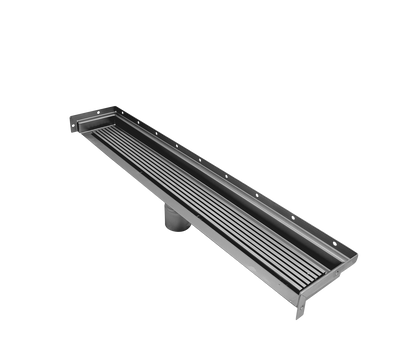

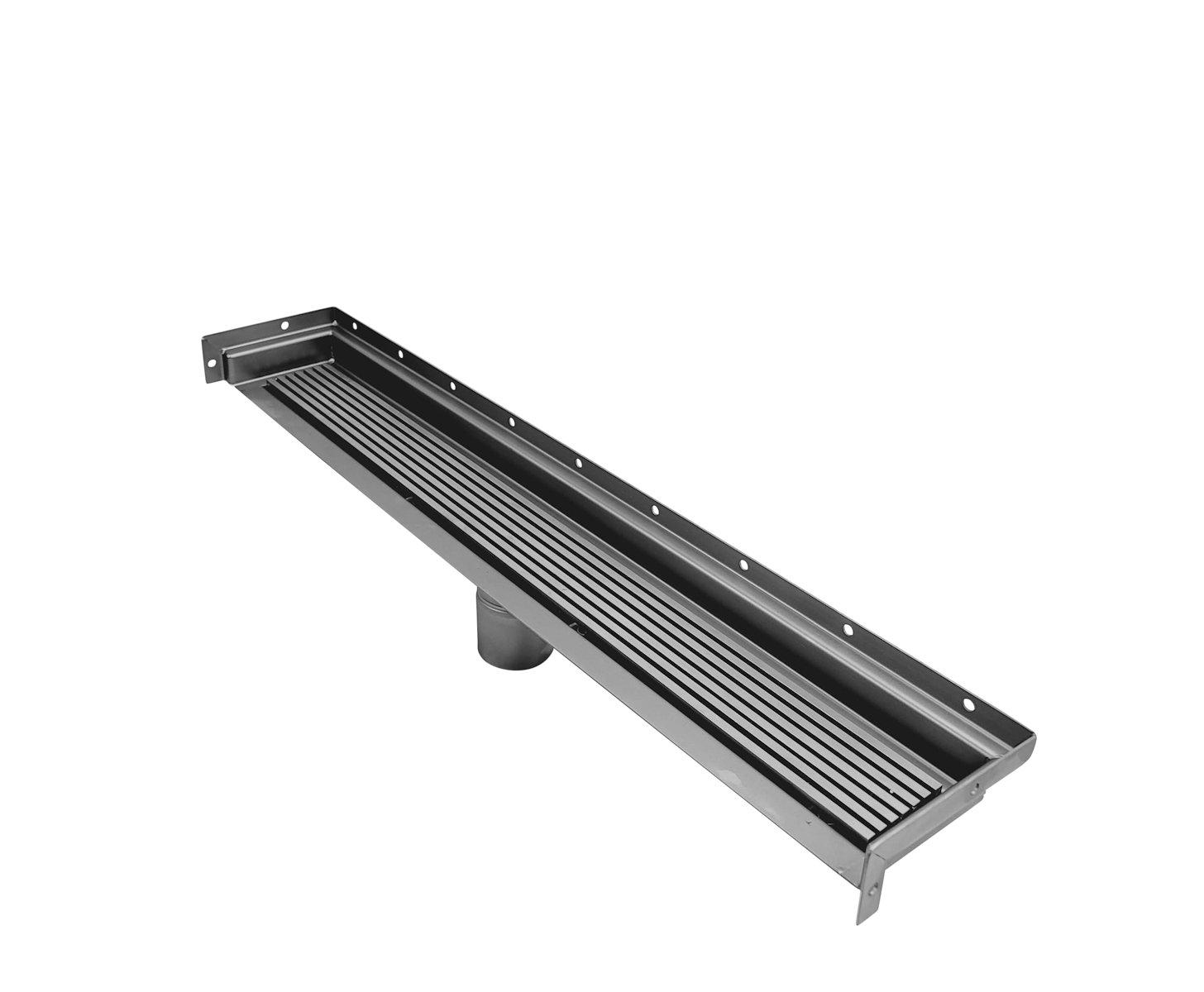

66 Inch Wall-to-Wall Linear Shower Drains, Polished Wedgewire Design, Three-Side Flange - Drains Unlimited DUFR-TF Series

Premium stainless steel  polished large linear drains designed for seamless wall-to-wall integration, installed flush with the wall for a smooth and continuous finish.

Important Note: The DUFR Linear Drains come in two flange options:

1. Backwall Return Flange Only: Perfect for both curbed and curbless installations with wall tiles that are 1/8" to 3/8" thick.

2. Three-Side Return Flange: Best for wall-to-wall installations with wall tiles that are 1/8" to 3/8" thick.

The DUFR Series wall-adjacent linear drains combine the classic beauty of a traditional linear drain with the benefit of close wall installation. Featuring an innovative wall-mounted design, they eliminate the strip of tile between the back wall and drain, removing the need for additional waterproofing bonding or floating finish tiles for a seamless aesthetic.

Main Features:

• Must be secured to the stud (wall framing).
• Installs flush with wall(s) for a clean finish and seamless look.
• *Full length measured between finish face of the framing (from Stud to Stud).
• Available in 3 different styles and with 3 different finishes.
• No-hub coupling Installation.
• 2-3/8 inches (outside diameter) no hub center outlet.
• Textured bonding flange.
• 2-1/2" width grate cover with 'V'-shape bottom.
• 14-gauge AISI304 stainless steel, Rust-resistant and electro-passivated.

Suitable Substrates: Concrete, Exterior glue, Plywood (Interior only), Cement backer board, Cement mortar bed, Shower pans

Available Size: 30", 32", 34", 36", 40", 42", 44", 48", 54", 60", 66", 72" (Drains are measured at the outer edge of the flange. The visible grate is approximately 2" shorter than the total drain size).

Package Includes: Drain body, Grate, Hair Strainer, Puller Key.

Our Premium Wall-to-Wall Linear Shower Drain will upgrade your shower with elegance, sophistication, top hygiene, and efficient drainage. Available in brushed, polished, and black finishes, these drains ensure optimal water drainage while adding a contemporary, high-end feel to your shower.

Additional Features:

Drains are designed to be compatible with all major water-resistant adhesive material manufacturers such as Blanke Aqua-Shield, Laticrete, Mapei, and Schluter.

• Made from heavy duty 304 stainless steel.
• No-hub Coupling Installation. 2 3/8" Drain Outlet.
• Textured flange to ensure a tight waterproof membrane seal to the drain body.
• Removable grate for easy cleaning and maintenance.
• Single slope to drain.
• UPC, CSA and ASME certified.
• Excellent corrosion resistance passivated finish.
• Hygienic barrier free design.
• Perfect for: Shower, bath, kitchen, hotel rooms, spa etc.
• Shallow V-bottom design for better water flow to drain outlet.
• High flow rate performance.
• SANS10400 compliant 75mm water seal.
• Accommodates any size tile format.
• Full length measured between finish face of framing.
• Additional grate options available with wide variety of standard sizes (Custom sizes available).

Drains Unlimited manufactures high-quality shower drains suitable for a range of shower layouts. The DUFB Series standard linear drains are available in multiple sizes, styles, and finishes, perfect for matching any shower size and design. For a more concealed installation, Drains Unlimited also offers the unique DUWR Series wall-recessed linear drains, ideal for luxury showers. Custom linear drain options are available, including side outlet, horizontal side outlet, and 316-gauge stainless steel.
