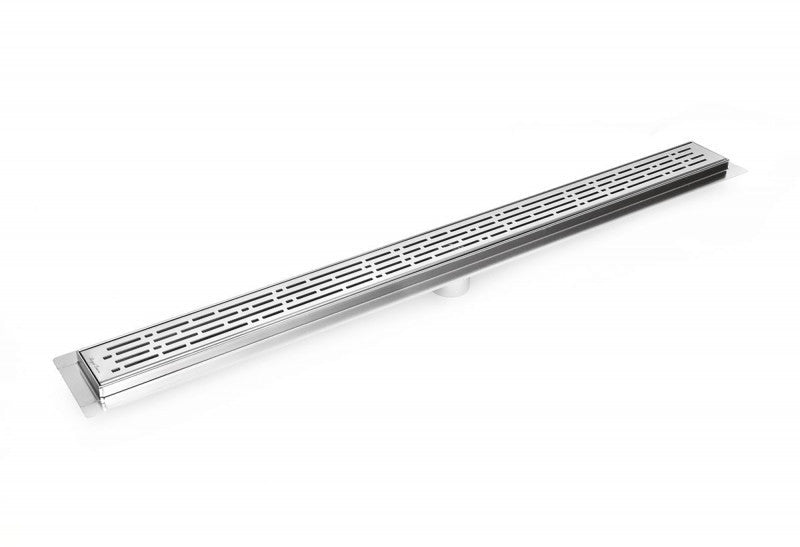

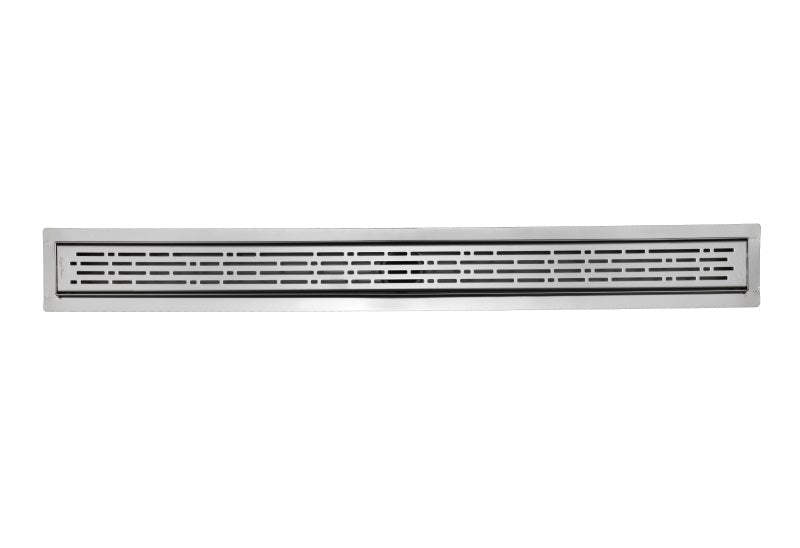

Large Linear Drains, 72 Inch Linear Shower Drain with Hair Trap Set, Broken Lane Brushed Nickel Design by SereneDrains

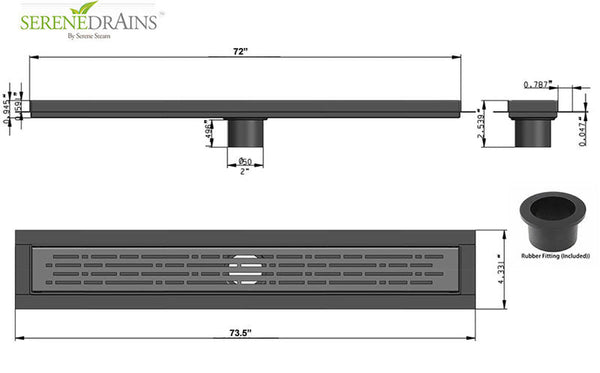

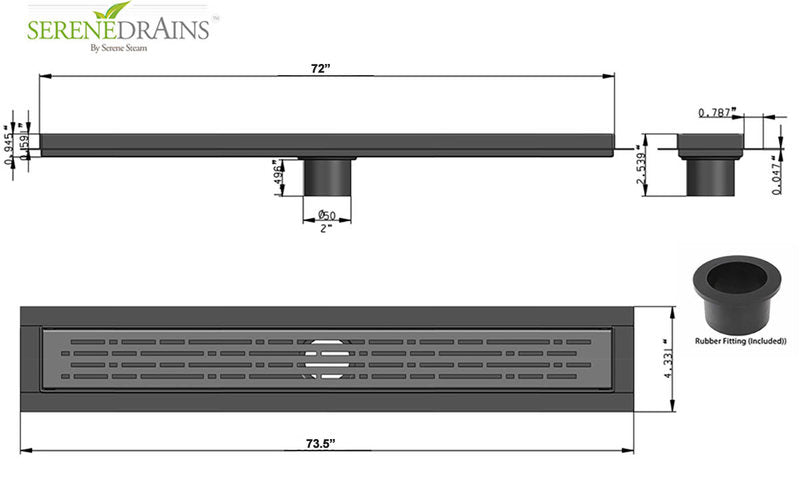

Net Size 72" x 2 3/4" | Overall Size 73.5" x 4 3/8" | Intake sq. in: 31.67.

Also Available In: 16", 24", 30", 35", 39", 47", 59", 72", 90".
In stock ready to ship. FREE SHIPPING

Drain Includes: 100% stainless steel brushed nickel channel body & grate, puller key, waterproofing membrane sheet around the drain flange (not required but included), Installation Instruction. (Hair Trap is a stainless steel strainer that sits inside the 2" diameter outlet. Clean strainer regularly).

Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc.

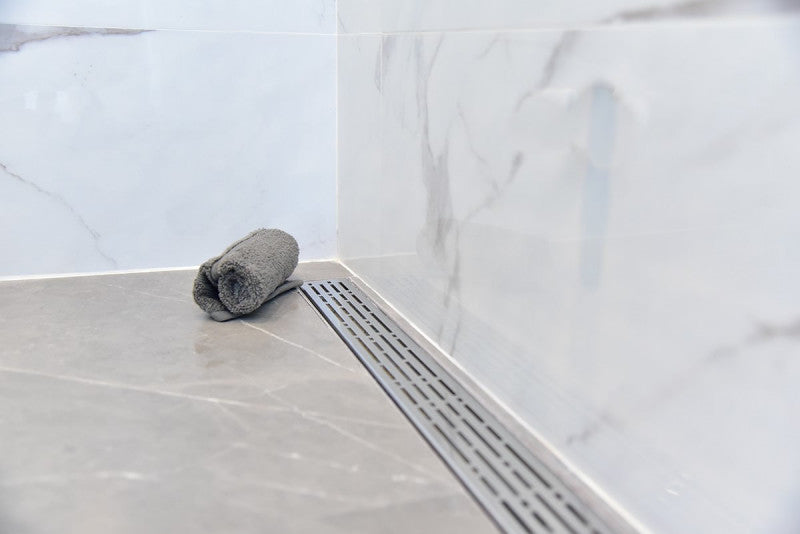

Extra large liner drains - Perfect for wheelchair access & barrier-free showers (walk in floor plans).

Features:

• Stainless steel brushed nickel finish.
• Superior quality laser cut electropolish finish.
• Bodies are fully welded and leak tested prior to dispatch.
• 2 Inch diameter central vertical outlet.
• Designed to be installed into any 2" shower drain flange.
• Compatible with tiles up to 10mm depth (14mm lip).
• Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
• Pre-Slope channel. Channel width: 2 3/4" (70 mm).
• Drain grate is 16 gauge 304 stainless steel.
• Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).

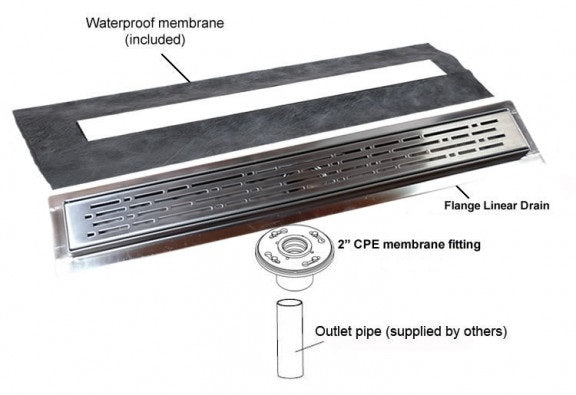

• Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.

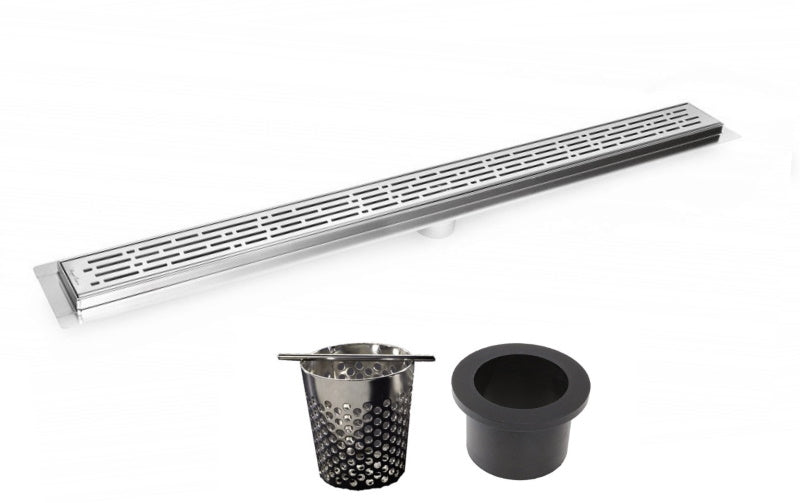

Available accessories include plumbing connectors (ABS/ PVC flange) and debris strainer. Drain Accessories

30 day return policy. Money back guarantee.
Contact us for quantity discounts
