SereneDrains Complete Linear Drain Installation Kit: Luxurious Matte Black Tile Insert Linear Shower Drain, 2 Inch ABS Shower Drain Base Flange, Hair Trap.

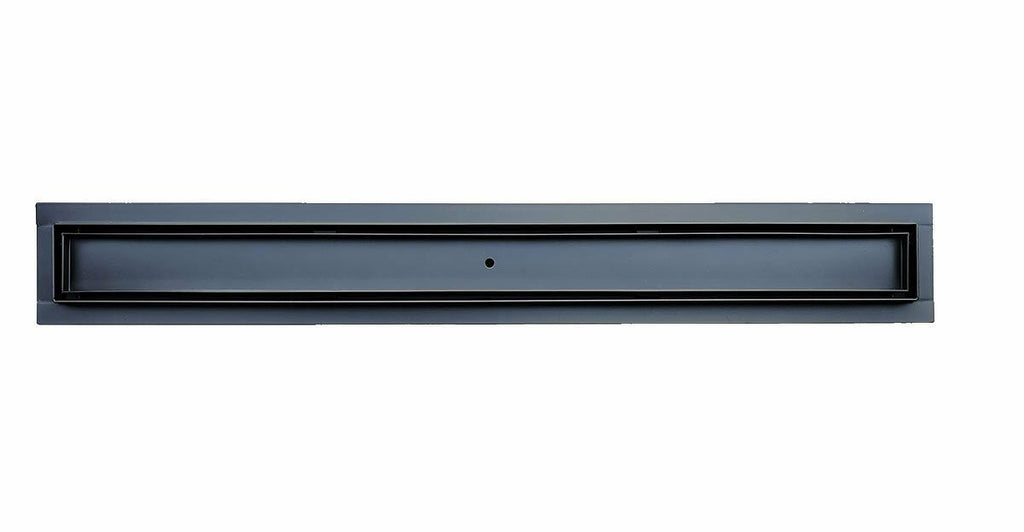

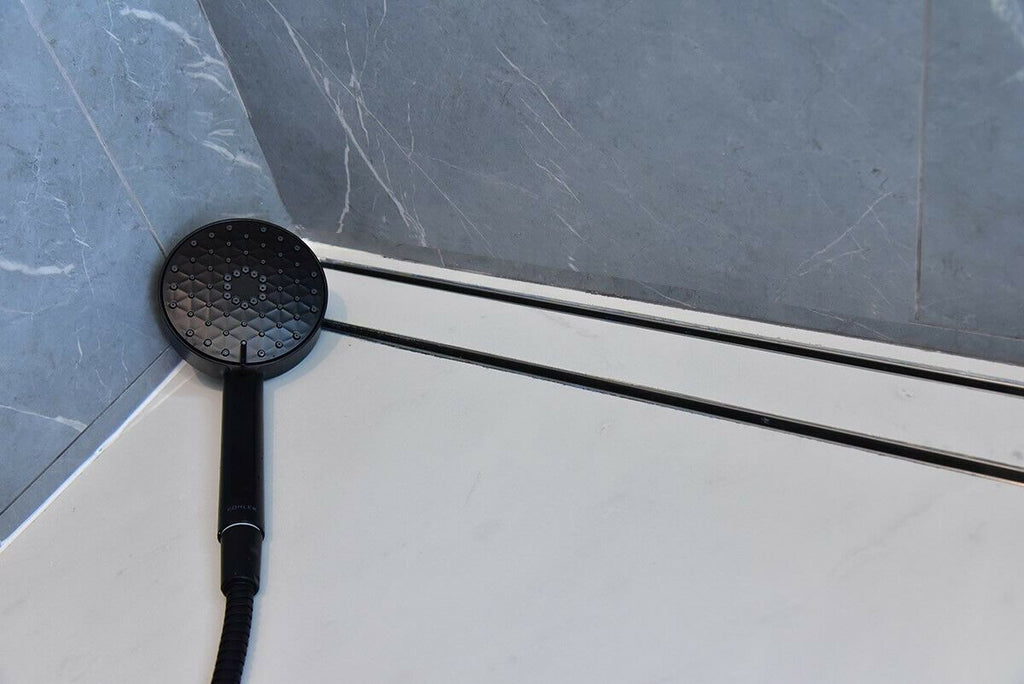

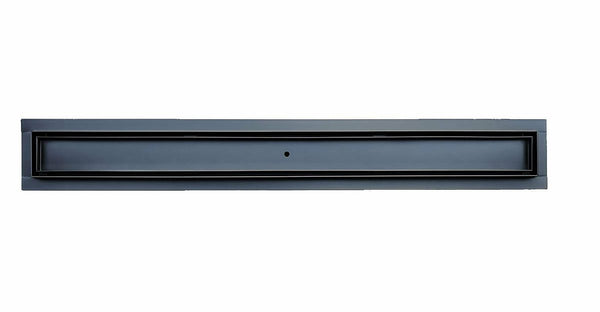

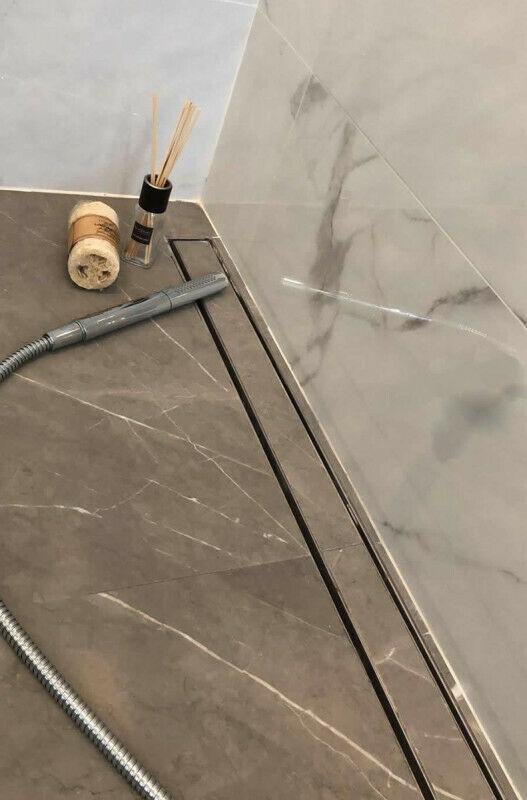

The Tile Insert shower drain is used to camouflage the drain with the same tile installed on the shower floor.

Available In: 16", 24", 30", 36", 40", 48", 60".

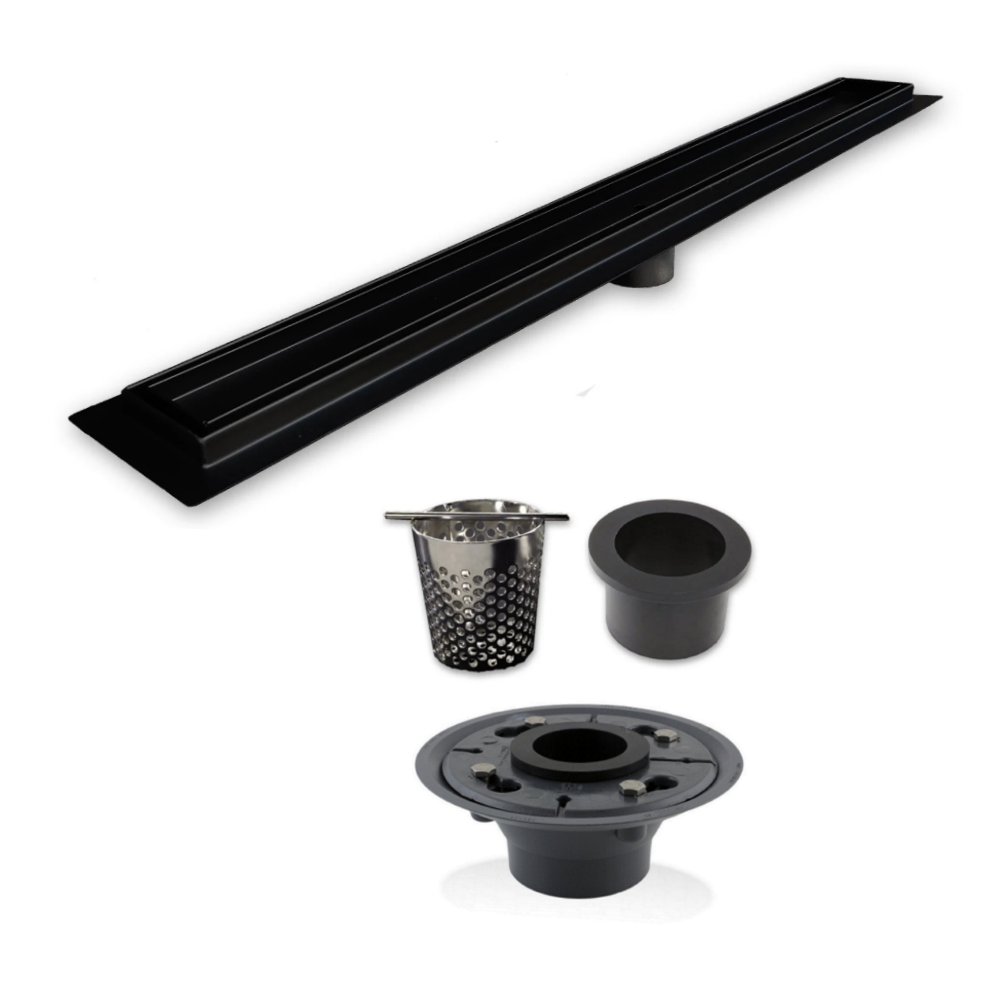

Drain Includes: 100% stainless steel channel body & grate, ABS shower drain base, rubber gasket, hair trap, puller key, waterproofing membrane sheet around the drain flange (not required but included), Installation Instruction.

We ship the ABS drain flange. Consult your contractor if construction code in your state requires ABS or PVC drain flange (PVC available).

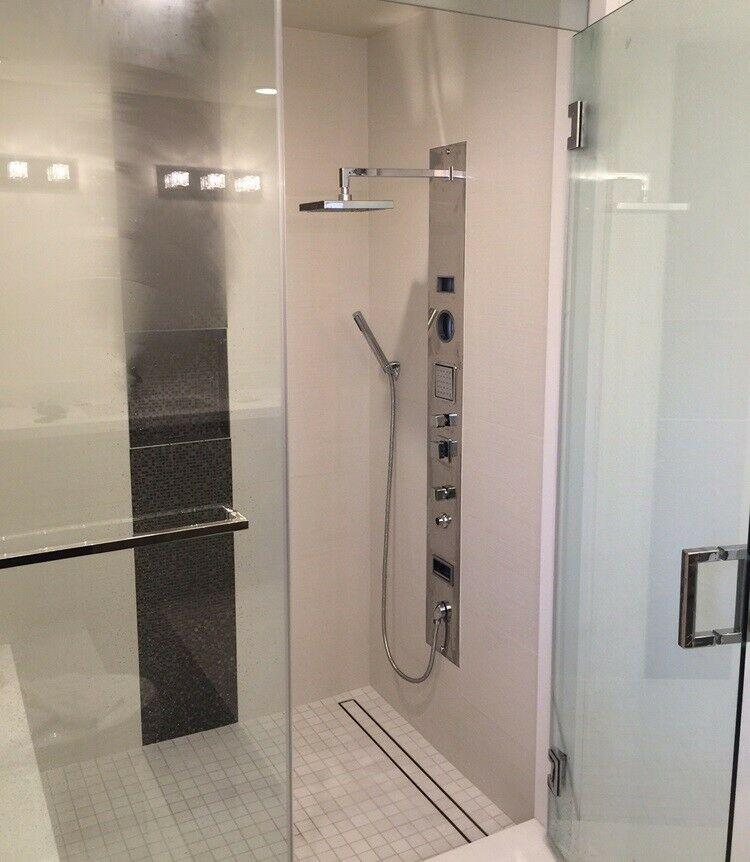

Applications: Showers, kitchens, pools, hotels, spas etc. Perfect for wheelchair access & barrier-free showers.

High quality materials: Made of 16 Gauge SS304 stainless steel flange, channel and grate. Brushed steel finish protects the linear shower drain from corrosion & rust.

Water and leak proof: the flange of the shower floor drain is designed for use with all waterproofing materials such as: "Hot-Mop", liquid membranes, sheet membranes, vinyl waterproofing etc.

Easy installation: The shower drain doesn’t have leveling feet. This is much more stable and makes installation easy by simply allowing you to rest the Flange on the floor edge.

Durable, solid and smooth: the frame is rounded (folded, not welded). This creates a frame twice as strong and gives the Linear Shower Drain a smooth touch to the feet. NO plastic parts.

Features:

• Stainless steel Matte Black finish.
• Bodies are fully welded and leak tested prior to dispatch.
• 2 Inch diameter central vertical outlet.
• Designed to be installed into any 2" shower drain flange.
• Compatible with tiles up to 10mm depth (14mm lip).
• Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
• Pre-Slope channel. Channel width: 2 3/4" (70 mm).
• Drain grate is 16 gauge 304 stainless steel.
• Flange body edge designed for use with all types of waterproofing.
• Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).

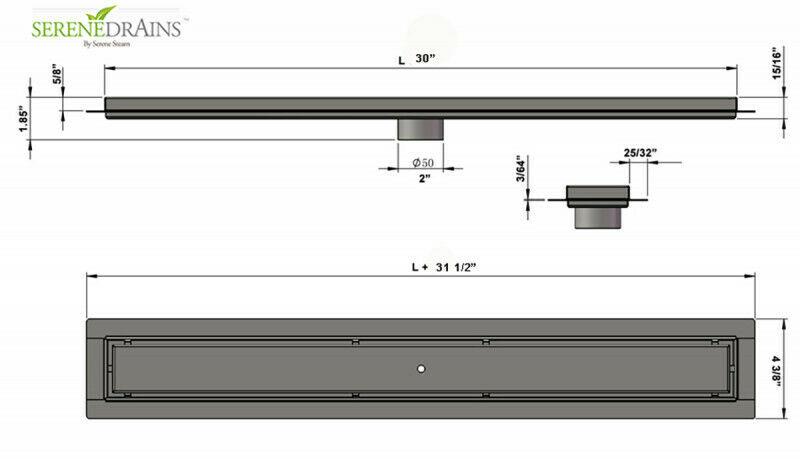

Dimensions:
Net Size 15" 3/4" x 2 3/4" 400mm | Overall Size 17" 1/4" x 4 3/8" | Intake sq. in: 12.38
Net Size 23" 1/2" x 2 3/4" 600mm | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96
Net Size 30" x 2 3/4" 762mm | Overall Size 31.57" x 4 3/8" | Intake sq. in: 17.62
Net Size 35" 3/8" x 2 3/4" 900mm | Overall Size 37.01" x 4 3/8" | Intake sq. in: 20.03.
Net Size 39" 3/8" x 2 3/4" 1000mm | Overall Size 40.95" x 4 3/8" | Intake sq. in: 21.12
Net Size 47 1/4" x 2 3/4" 1200mm | Overall Size 48.82" x 4 3/8" | Intake sq. in: 26.68
Net Size 59.05" x 2 3/4" 1500mm | Overall Size 60.63" x 4 3/8" | Intake sq. in: 31.67
