30 Inch Side Outlet Linear Shower Drain with Free Hair Trap by SereneDrains

Net Size 30" x 2 3/4" 762mm | Overall Size 31.57" x 4 3/8" | Intake sq. in: 17.62 (Additional sizes available).

When to Use the Offset Outlet Linear Drain

When faced with challenging shower plumbing configurations and construction limitations, the offset outlet linear drain emerges as a versatile and efficient solution. Consider scenarios where a structural joist is centrally positioned in the shower, making notching or drilling impractical. In such cases, the side outlet linear drain offers a simple and innovative alternative, allowing flexible drain placement without compromising the structural integrity. Moreover, in situations where relocating the drain outlet is costly, particularly in showers constructed on a 4-inch or deeper concrete surface, the side outlet linear drain proves to be a cost-effective and efficient choice. Its adaptability is further evident when the shower already has the drain outlet conveniently situated on the side of the floor. In all cases, it is advisable to seek the expertise of a professional plumber or contractor familiar with the intricacies of your specific project for optimal installation.

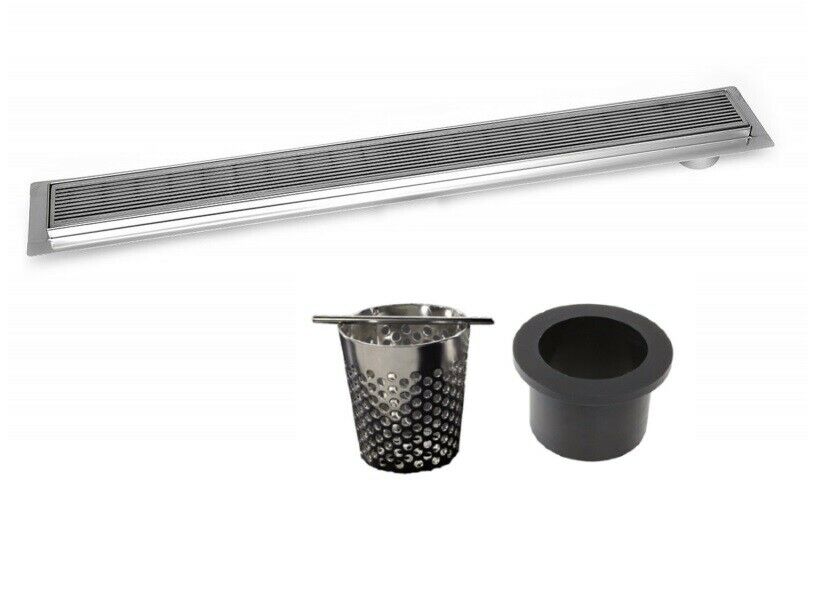

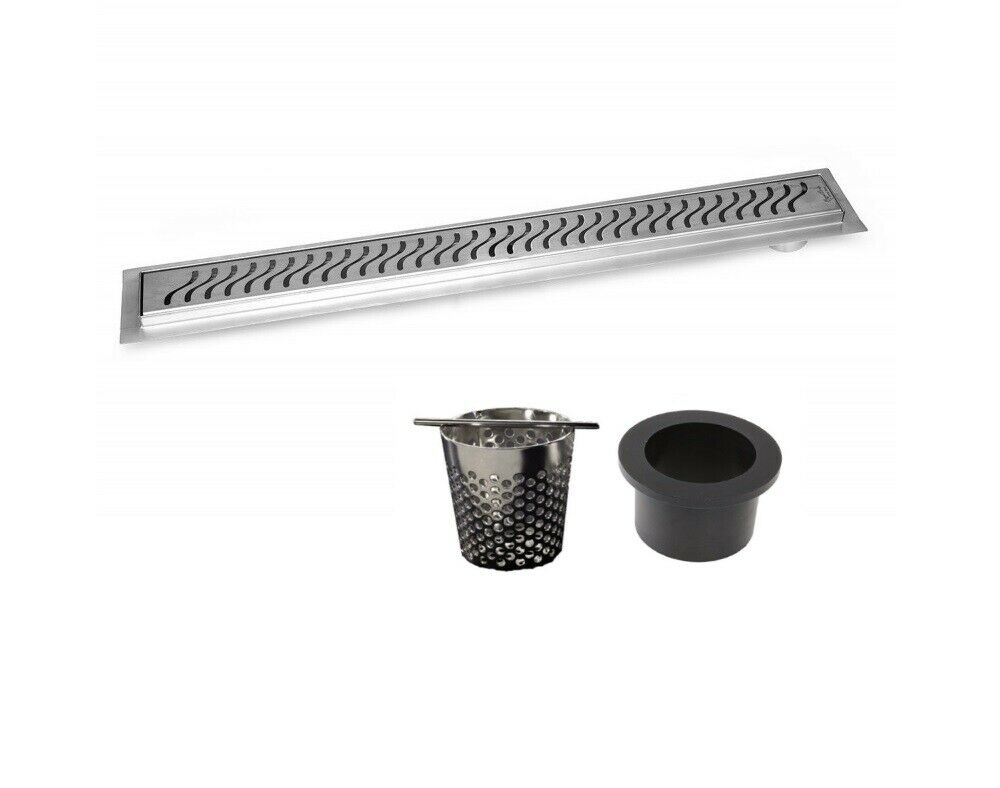

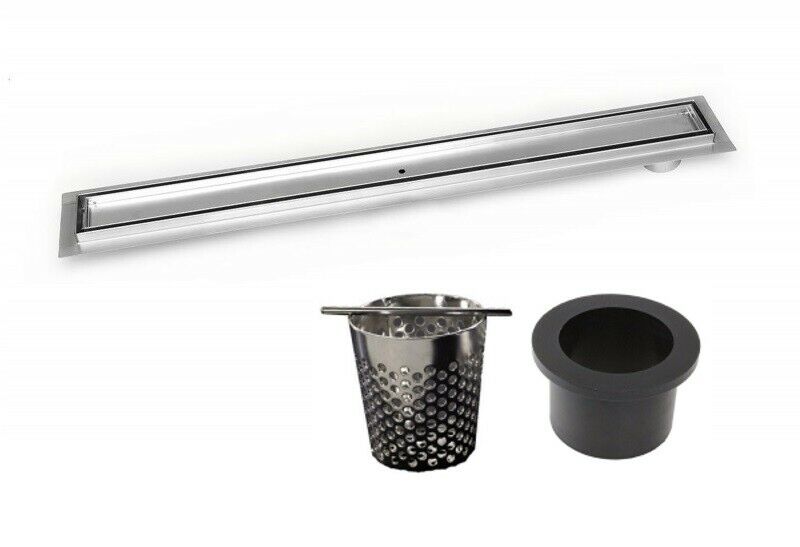

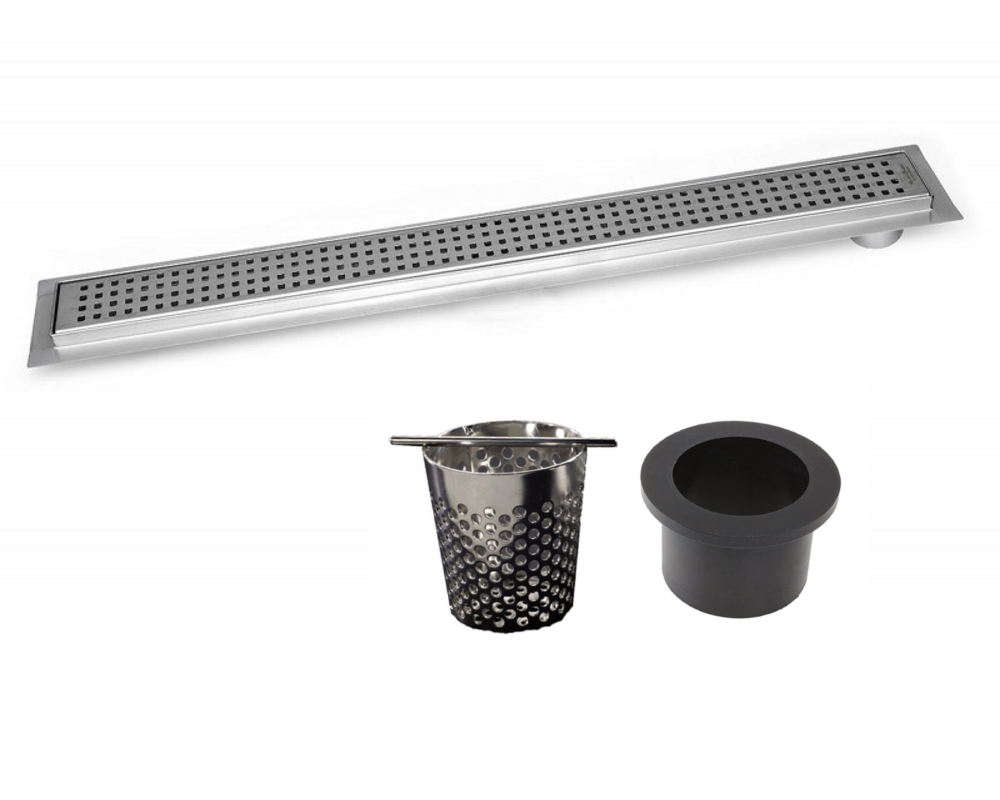

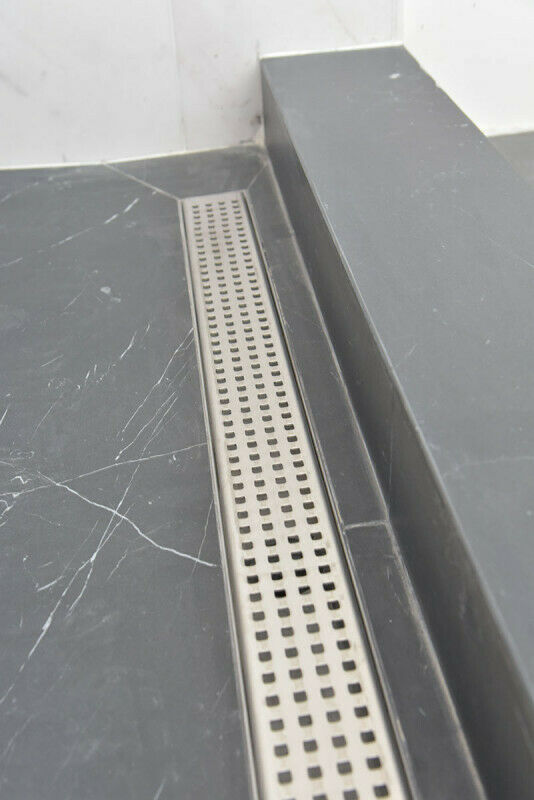

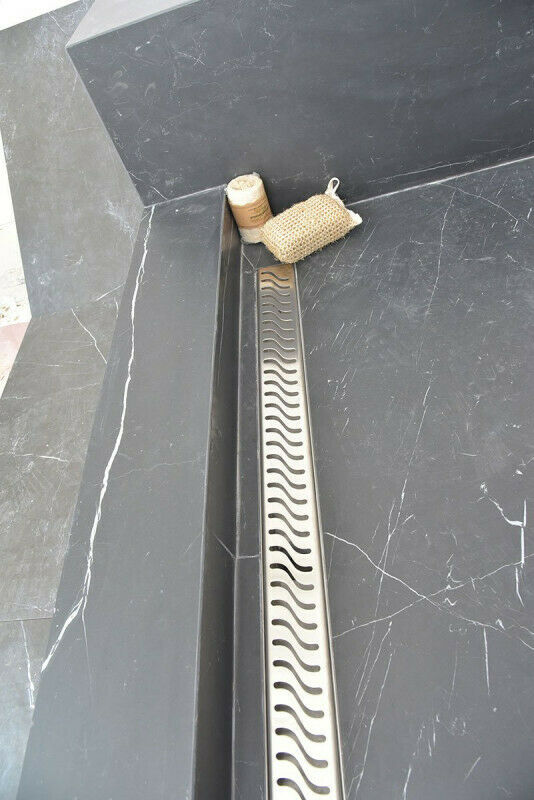

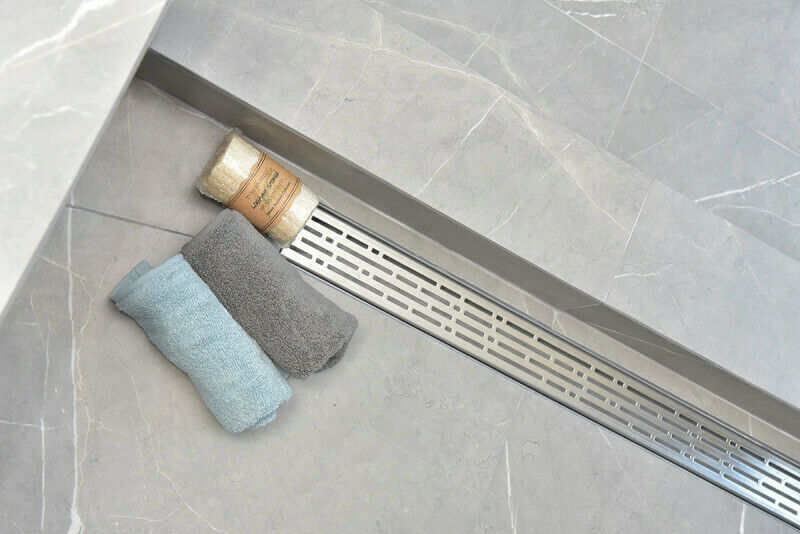

Luxurious Drain Designs: Ocean Wave Design, Traditional Square Design, Broken Lane Design, Tile Insert Design.

Perfect for:
Wheelchair access & barrier-free showers (walk in floor plans).
Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc.

Construction:

Side outlet drain apex 2.8" from the drain end.
Designed for installation into any 2" shower drain flange.
Bodies are fully welded and leak-tested before dispatch.
Compatible with tiles up to 10mm in depth (with a 14mm lip).
Pre-Slope channel - Channel width: 2 3/4" (70 mm).
Drain grade is 16 Gauge 304 Stainless Steel. Electro-polished finish.
Sized to match standard 1/2", 1", 2, and 4" tiles without cutting.
Flow rate: at the entrance of the shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, etc.
Superior quality, most durable finishes, easily maintained. No special cleaning required.

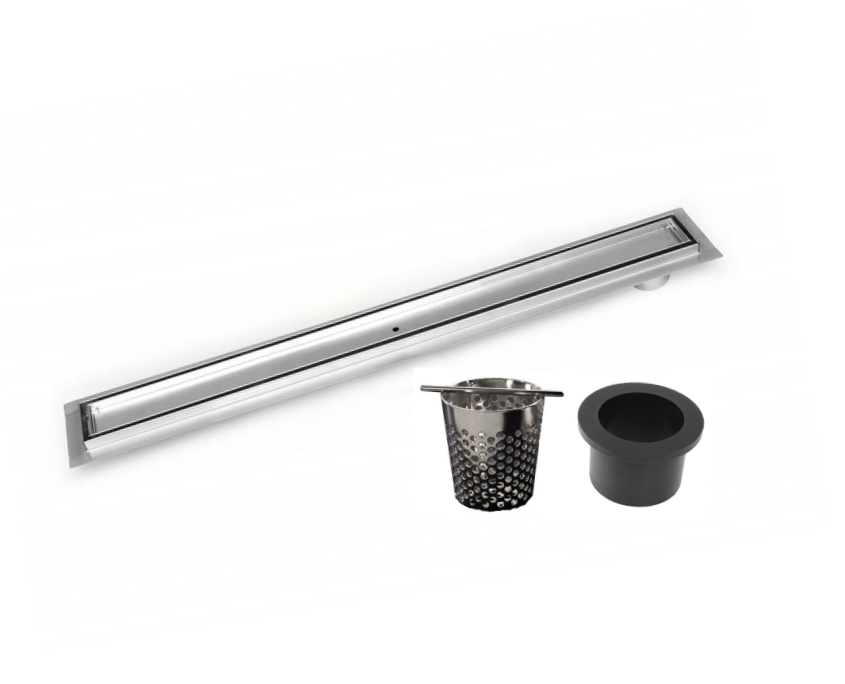

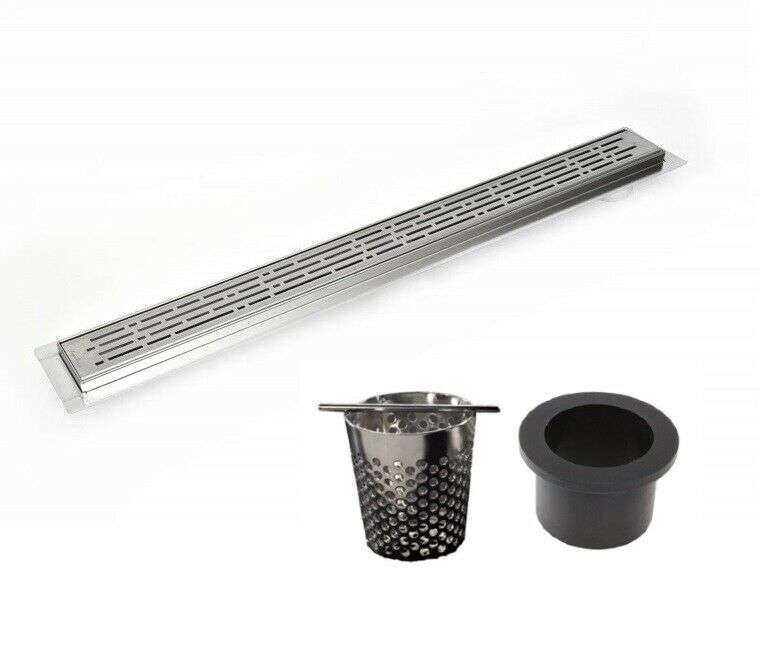

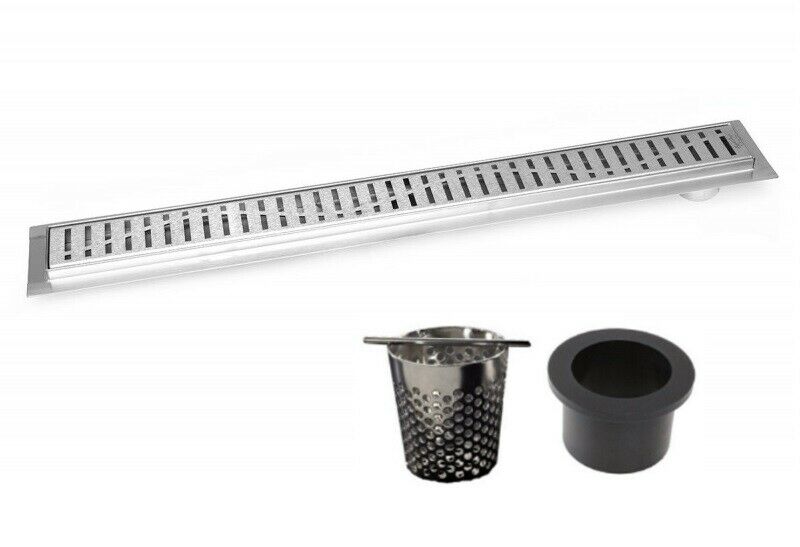

Optional accessories available: plumbing connectors (ABS/PVC drain base flange) and debris strainer.

Dimensions:
Net Size 15" 3/4" x 2 3/4" 400mm | Overall Size 17" 1/4" x 4 3/8" | Intake sq. in: 12.38
Net Size 23" 1/2" x 2 3/4" 600mm | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96
Net Size 30" x 2 3/4" 762mm | Overall Size 31.57" x 4 3/8" | Intake sq. in: 17.62
Net Size 35" 3/8" x 2 3/4" 900mm | Overall Size 37.01" x 4 3/8" | Intake sq. in: 20.03.
Net Size 39" 3/8" x 2 3/4" 1000mm | Overall Size 40.95" x 4 3/8" | Intake sq. in: 21.12
Net Size 47 1/4" x 2 3/4" 1200mm | Overall Size 48.82" x 4 3/8" | Intake sq. in: 26.68
Net Size 59.05" x 2 3/4" 1500mm | Overall Size 60.63" x 4 3/8" | Intake sq. in: 31.67

Contact us for quantity and contractors discounts.
