OffSet Outlet Linear Drains Tile Insert Grate with Cast Iron Base and Hair Trap Set By SereneDrains

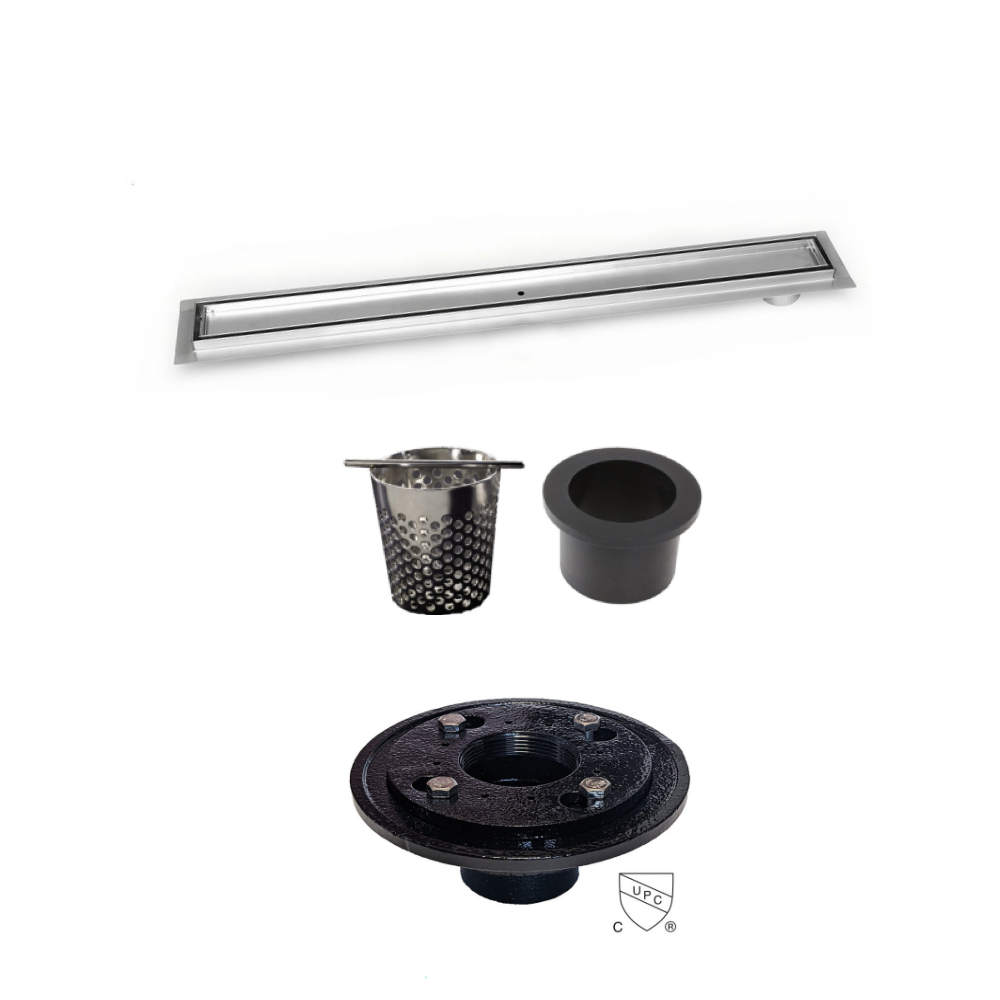

Complete Installation Kit: Side outlet shower drain base and grate covers with cast iron 4 bolt drain with clamp ring and bolts, hair trap. (Note! Consult your contractor/plumber if construction code in your state require ABS or PVC drain or Cast Iron flange).

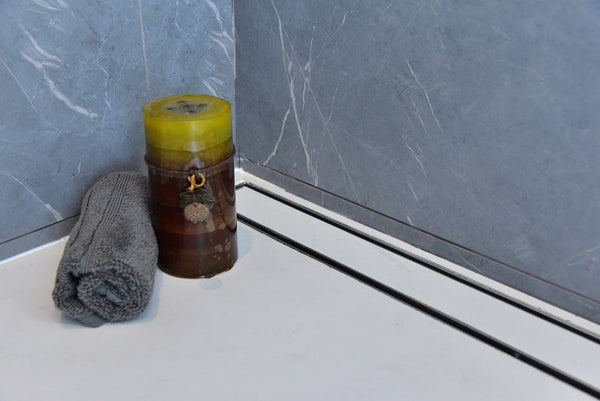

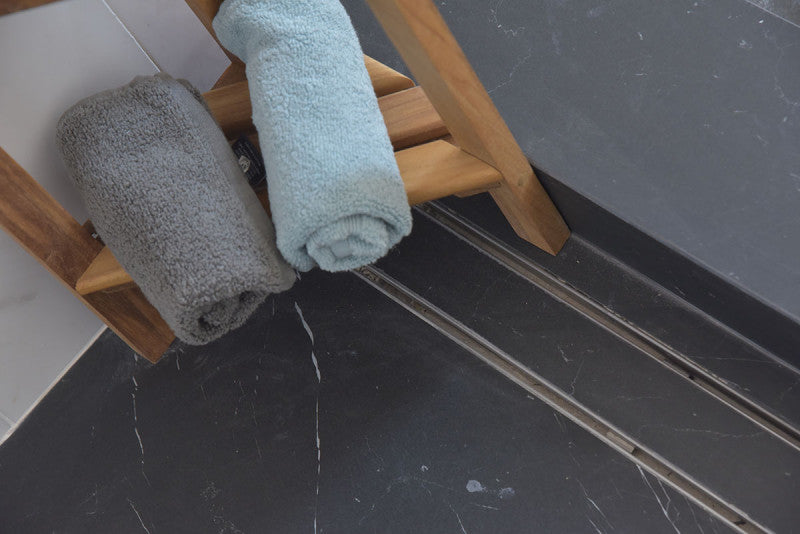

TILE INSERT shower drain is used to camouflage the drain with the same tile you are installing on the shower floor.

Available In: 16", 24", 30", 35", 39", 47", 59".

Drain Includes: 100% stainless steel channel body & grate, puller key, waterproofing membrane sheet around the drain flange (not required but included), cast iron base, hair trap, Installation Instruction.

Applications: Shower & bath, kitchen, pools, balconies, hotel rooms, gym, spa etc. Perfect for wheelchair access (ADA complaint) & barrier-free showers (walk in floor plans). Offset Outlet Linear Drain is used if joist is in the center of the shower opening and notching or drilling is not an option. If shower is set on 4 inch or more concrete and relocation of the drain outlet is costly. If the drain outlet already exists on the side of the shower. And other shower construction plans. Central vertical outlet linear drains also available (Consult a professional).

Drain Features:

    The shower channel Grate is grade 16 gauge 304 stainless steel.
    Flow rate: at entrance of shower – 6.3GPM (0.4 l/s); against the wall – 9.5GPM (0.6 l/s).
    Bodies are fully welded and leak tested prior to dispatch.
    2″ diameter side outlet vertical outlet.
    Compatible with tiles up to 10mm depth (14mm lip).
    Wheelchair access (ADA Compliant).
    Barrier-free showers (walk in floor plans).
    Pre-Slope Channel.
    Channel width: 2 3/4″ (70 mm).
    Electro polished finish.

Features: Cast Iron 4 Bolt Drain with Clamp Ring and Bolts
    Low Profile Bolt-Down Shower Drain
    Non-Threaded with Rubber Fitting
    UPC - Uniform Plumbing Code
    Durable cast iron construction
    Black finish
    2 in. inside caulk connection
    6-1/2 in. OD pan
    2-1/4 in. overall height
    Tongue and groove cast iron bolt down clamping ring
    Weep holes on both top and bottom for secondary drainage
    Can be used with gasket to make unit no caulk
    For 2 in. IPS threaded tailpieces
    For shower applications

Drains Dimensions:

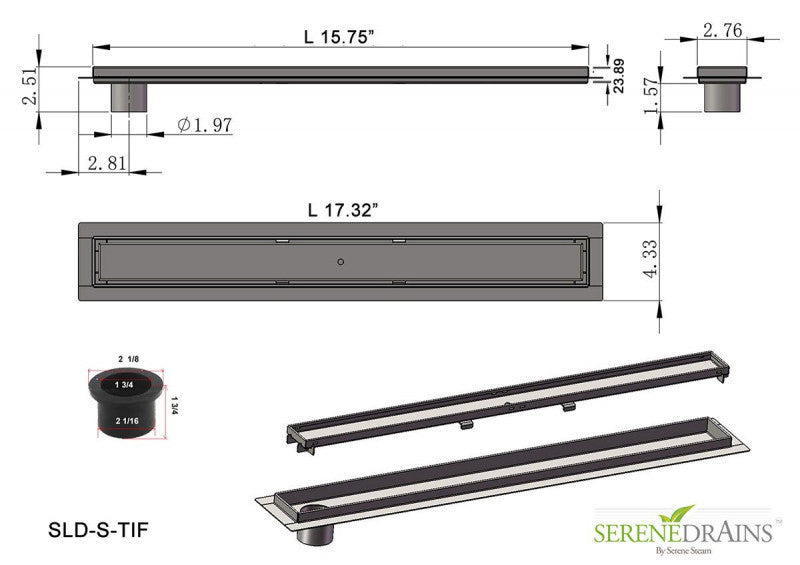

    16″ Length, 15 3/4″ x 2 3/4″ (400mm) Intake sq. in: 12.38

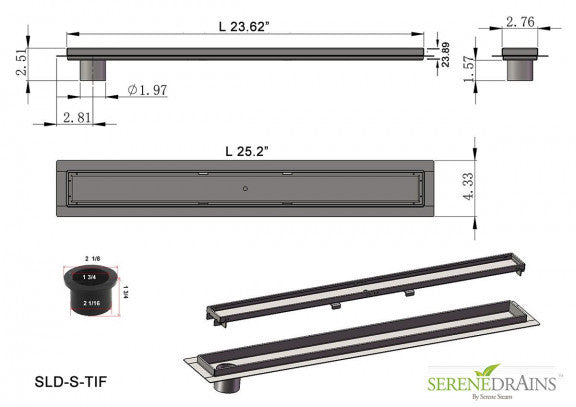

    24″ Length, 23 1/2″ x 2 3/4″ (600mm) Intake sq. in: 14.96
    30″ Length, 30″ x 2 3/4″ (732mm) Intake sq. in: 17.62
    35″ Length, 35 3/8″ x 2 3/4″ (900mm) Intake sq. in: 20.03
    39″ Length, 39 3/8″ x 2 3/4″ (1000mm) Intake sq. in: 21.12
    47″ Length, 47 1/4″ x 2 3/4″ (1200mm) Intake sq. in: 26.68
    59″ Length, 59″ x 2 3/4″ (1500mm) Intake sq. in: 31.67
