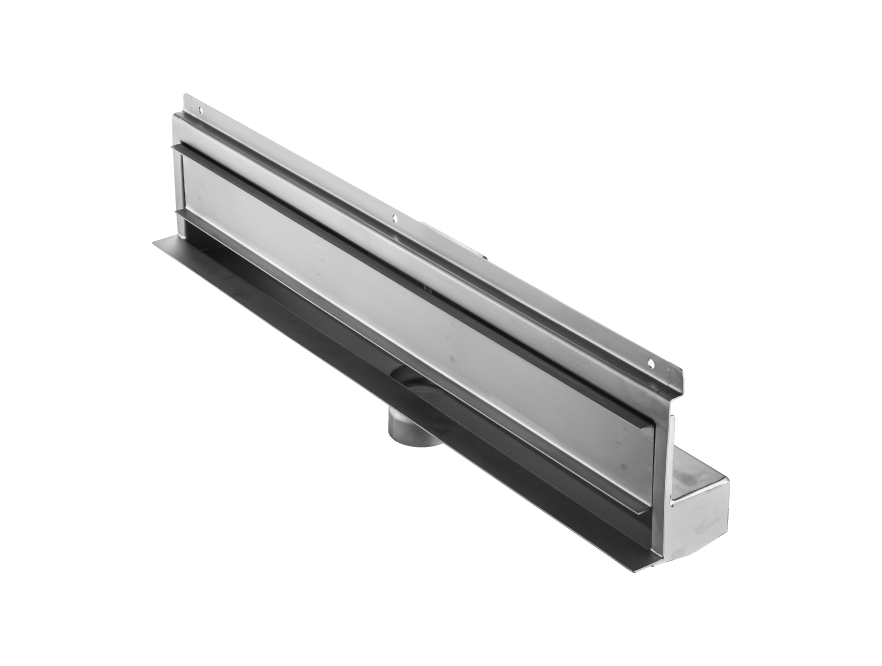

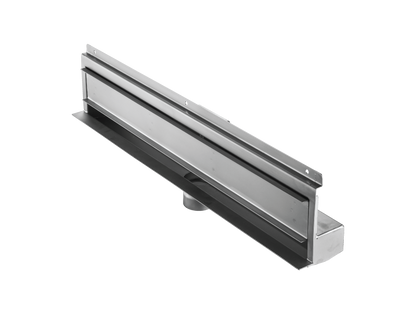

33 Inch Tile-in Wall Recessed Linear Drain, Brushed Stainless Steel - Drains Unlimited Flangeless DUW Series

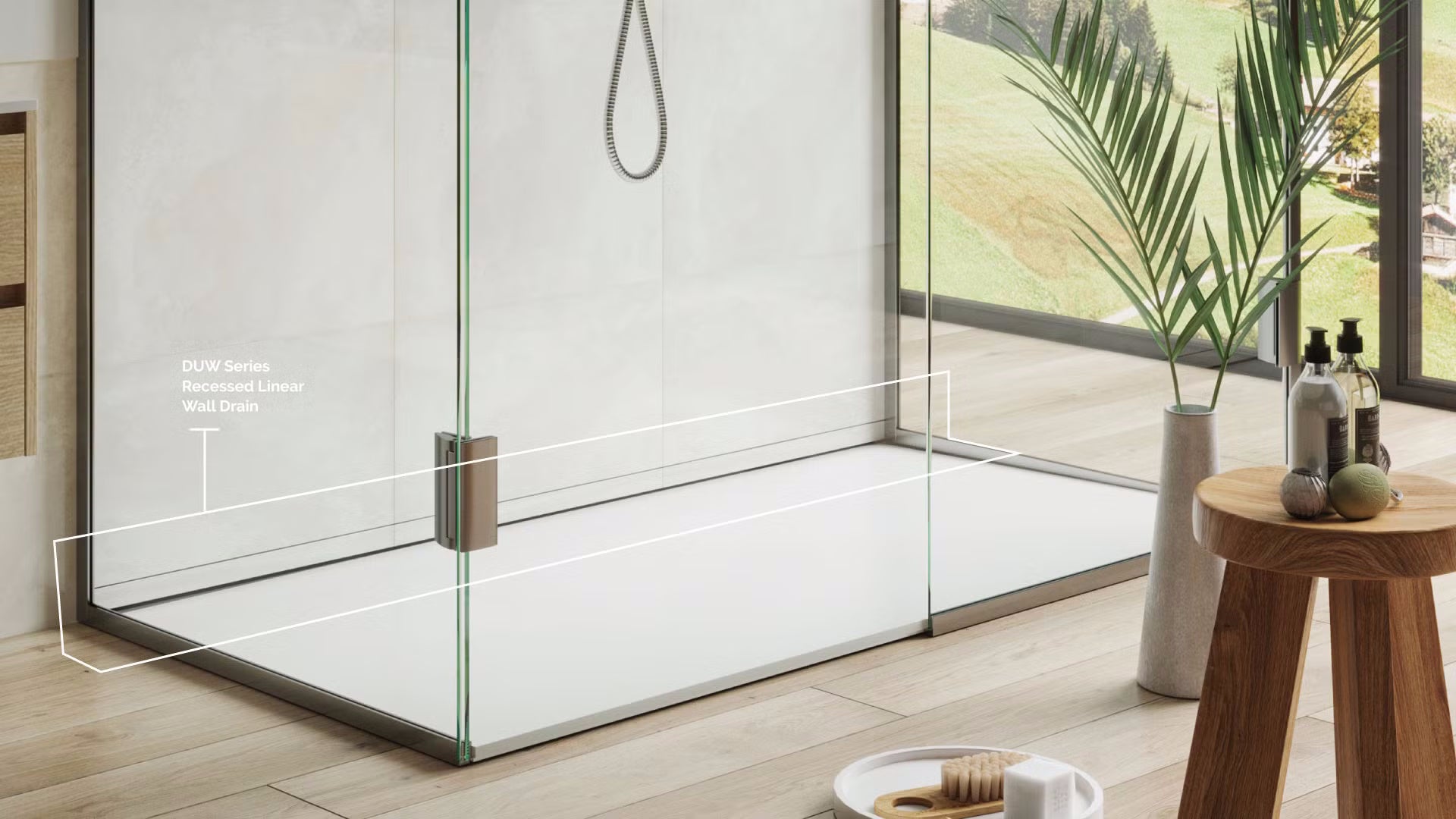

The DUW wall recessed linear drain is a unique drainage solution featuring a 2-3/8 inches center outlet for no-hub coupling installation. Made from rust-resistant 14-gauge AISI 304 stainless steel with an electro-passivated finish, it ensures durability and longevity. The removable magnetic tile-inlay grate makes it easy to clean and nearly invisible once installed. Designed for wall-mounting, this drain seamlessly blends into its surroundings, enhancing the aesthetic of your shower area.

The Flangeless recessed linear drain boasts a universal design, making it ideal for various drain installations, especially suitable for curb and curbless configurations. Additionally, a Wall Flange Design is available for wall-to-wall installations.

Suitable for Tile or Stone Slab Installations:

• Floor Tile: 1/8" - 3/8"
• Floor Slab: 1/2" - 3/4"

Package Includes: Drain body, Grate, Hair Strainer, Puller Key.

Available Sizes: 12", 29", 31", 33", 35", 39", 41", 43", 47", 53", 59", 65", 71".

Features:

• Available in flangeless (DUW) and wall flange (DUWR) models for compatibility with any tile or stone installation.
• Constructed from heavy-duty 304 stainless steel.
• Coupling with Hose Clamps (not included).
• Passivated finish for a food-grade, hygienic surface.

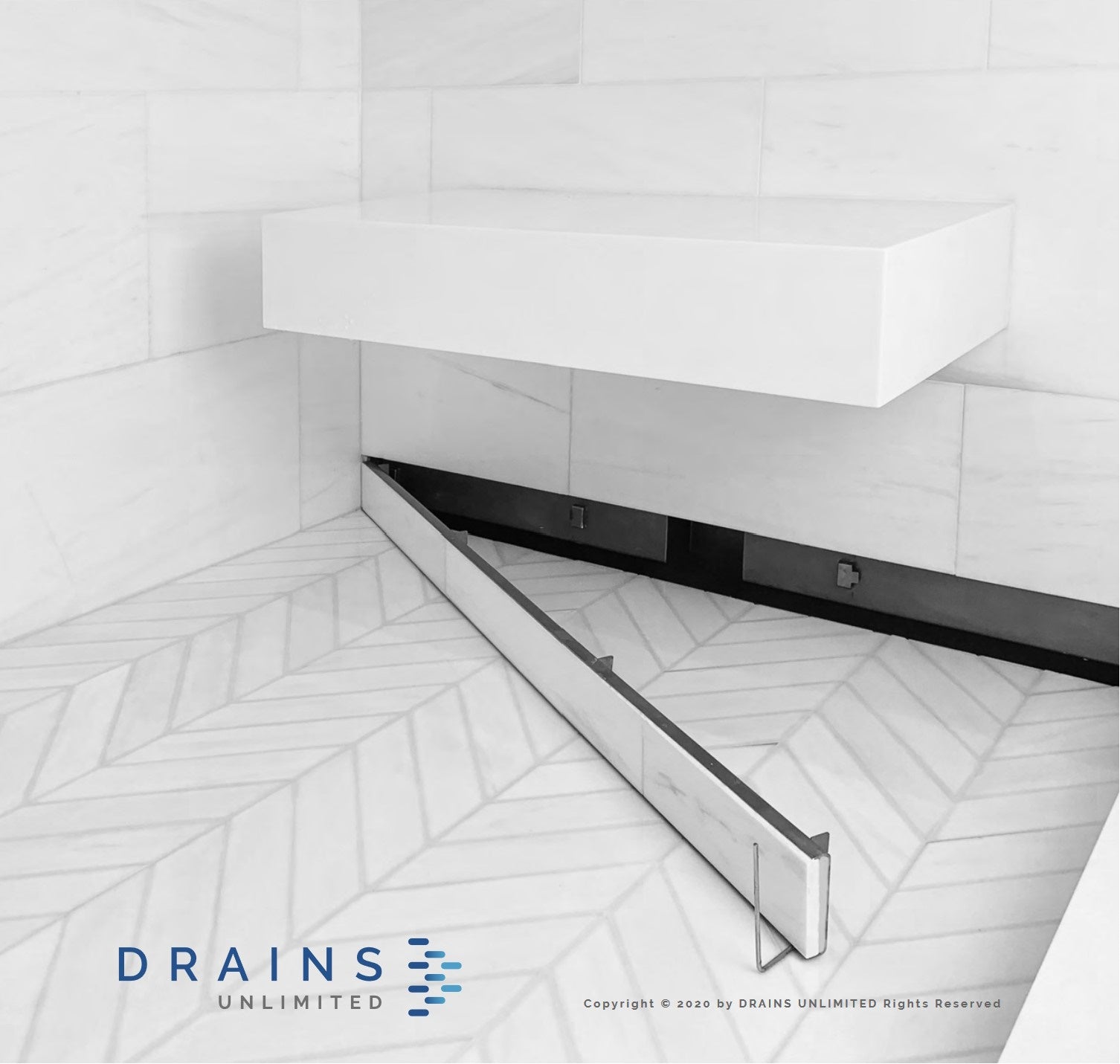

• Can be installed beneath a shower bench for a distinctive aesthetic.
• Magnetic, removable tile in-lay grate for easy cleaning.
• Compatible with liquid and fabric waterproofing membranes.
• UPC, CSA, and ASME certified.
• Single slope pitch for efficient drainage.
• Rust-resistant passivated finish.
• Hygienic barrier-free design.
• Easy to clean compared to conventional linear drains.
• Applications: Commercial and Residential.

• Perfect for showers, baths, balconies, hotel rooms, gyms, spas, etc.
• Suitable Substrates: Concrete, Exterior glue Plywood (Interior only), Cement backer board, Pre-slope foam shower pans.
• DUW Series drains suitable for any single-plane slope shower installation.

Drains are designed to be highly compatible with the North American shower construction industry and major water-resistant adhesive material manufacturers such as Blanke Aqua-Shield, Laticrete, Mapei, and Schluter.

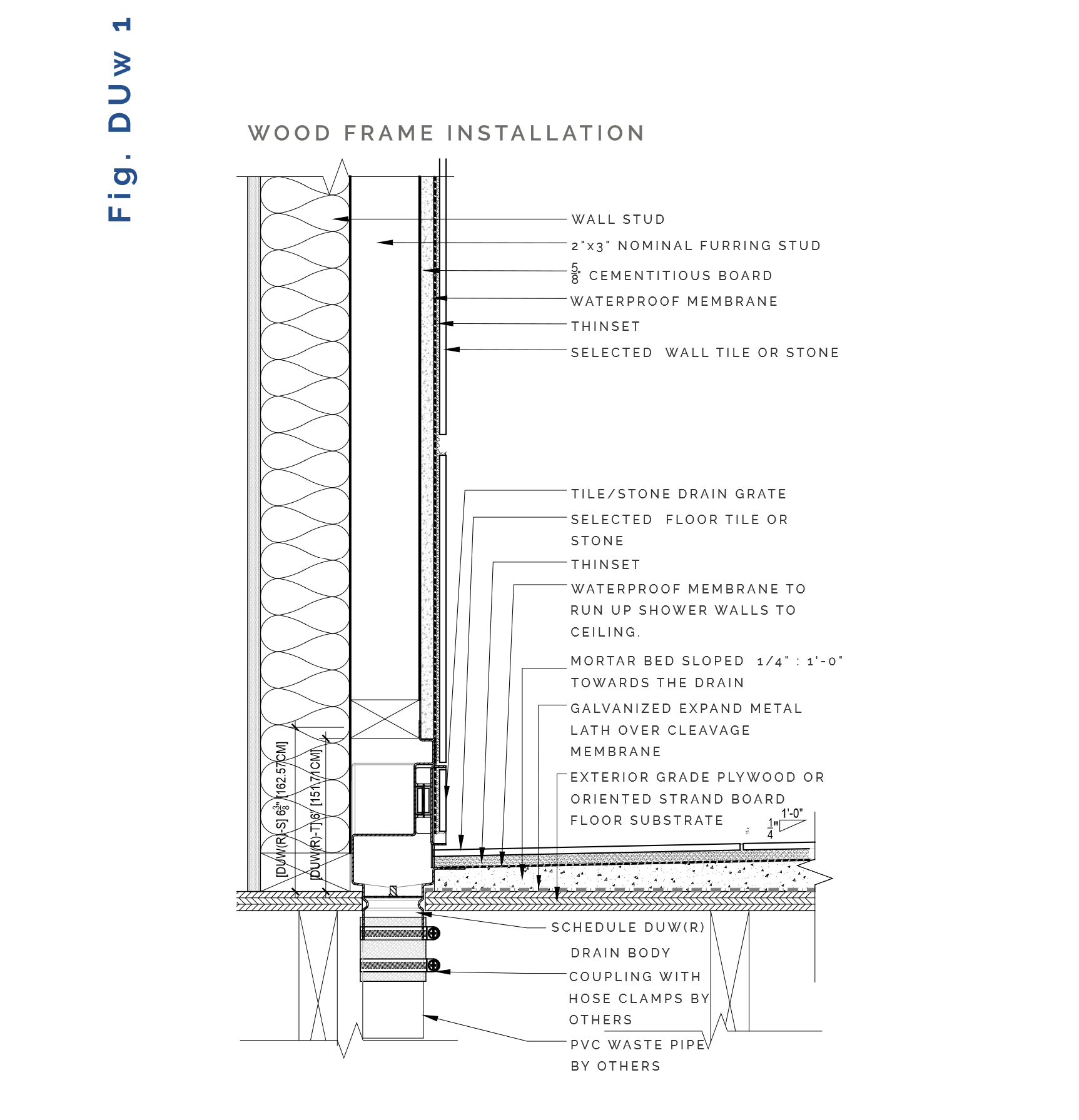

Watch How to Install Wall Recessed Linear Shower Drain
